Digital I/O coupler Series 9413 (discontinued)
Art. No.:
161991
Product Type:
9413/21-210-84-FF
min. ambient temperature:
-20 °C
max. ambient temperature:
+65 °C
Zone Filter:
Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Application range (zones):
1, 2, 21, 22
Certificates:
ATEX (PTB), Canada (FM), IECEx (PTB), International (FF), USA (FM)
Fieldbus:
Ex e or Ex i
Power supply:
external
Field enclosure:
without
Country of origin:
DE
Only 1 items available
Technical data
General
| MY R. STAHL | 9413A |
| Product Type | 9413/21-210-84-FF |
| Highlights | For connecting up to eight contacts or NAMUR proximity switches and up to four solenoid valves to a Foundation H1 Fieldbus in Zone 1Ex ia IIC inputs/outputsOperation on a high-power trunk or FISCO fieldbusIntegrated functional blocks for DI, DO, DO_valve, MDI, MDO, AI (frequency), CI (counter) and LTB (logic) |
| Functional Description | The Series 9413 digital I/O coupler for Zone 1 is used to connect eight intrinsically safe contacts or NAMUR proximity switches and four intrinsically safe solenoid valves or indicator lamps to an FF H1. The 4-wire device has an external auxiliary power supply. The fieldbus can be operated in an intrinsically safe (FISCO) or non-intrinsically safe (high-power trunk) configuration. The input, output and fieldbus are galvanically separated. |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Input
Ambient Conditions

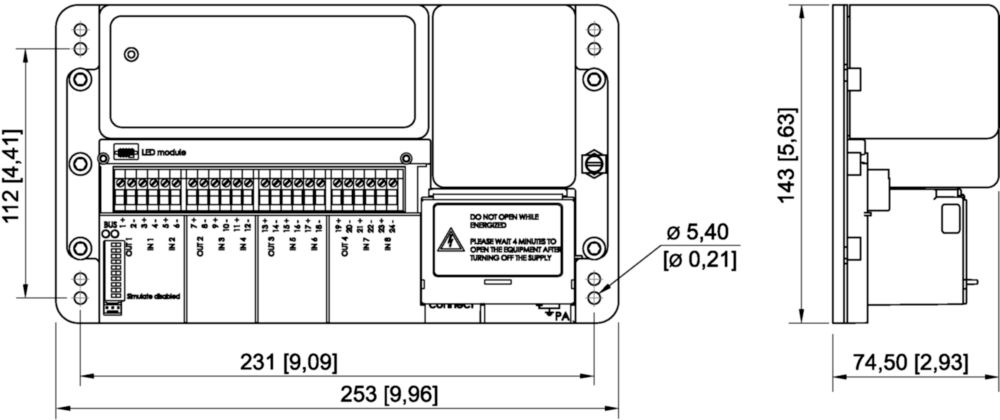

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Digital I/O Coupler Series 9413 | Data Sheet |
 |
|
| Digital I/O Coupler Series 9413 | Data Sheet |
|
|
| Digital I/O Coupler Series 9413 | Data Sheet |
 |
|
| Digital I/O Coupler Series 9413 | Data Sheet |
 |
|
| Digital I/O Coupler Series 9413 | Data Sheet |
|
|
| Digital I/O Coupler Series 9413 | Data Sheet |
 |
|
| Digital I/O Coupler Series 9413 | Data Sheet |
|
