Series 8118 junction boxes
Art. No.:
133078
Product Type:
8118/113-303
Product Description:
Junction box With fuses
max. ambient temperature:
+40 °C
min. ambient temperature:
-40 °C
Certificates:
ATEX (PTB), Brazil (ULB), China (NEPSI), IECEx (PTB), India (PESO), Korea (KTL)

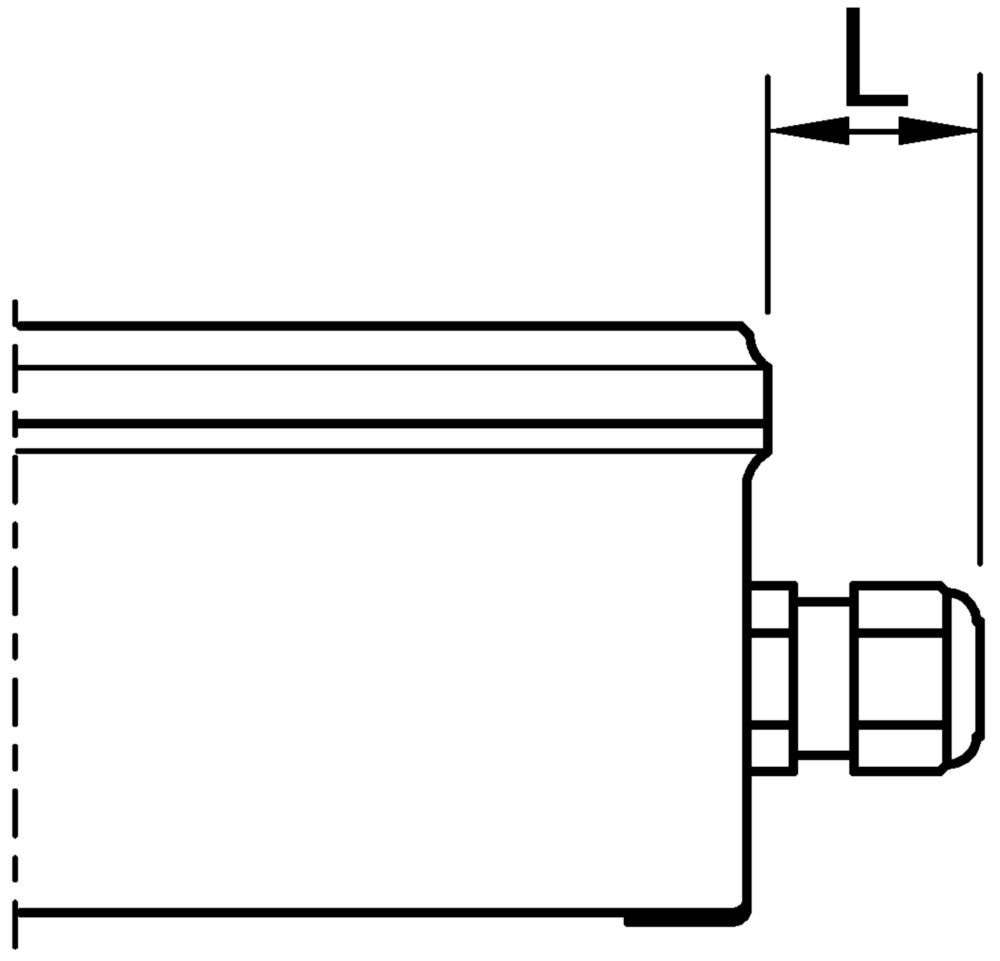

Entry 1:
2 x Black cable gland
M20 Ø 6 ... 13 mm
M20 Ø 6 ... 13 mm
Entry 2:
2 x Stopping plugs
M20 x 1,5
M20 x 1,5
Type of terminals 1:
3 x Mantle terminal
4 mm²
4 mm²
Country of origin:
DE
Available in stock
Technical data
General
| MY R. STAHL | 8118A |
| Product Type | 8118/113-303 |
| Product Description | Junction box With fuses |
| Highlights | Resistant Ex e enclosure, universally usable as connection or junction boxes and/or to safeguard electric distributors up to 6.3 AIP66 degree of protectionWith mantle terminals or with a combination of mantle terminals and miniature fuses (optional) |
| Functional Description | R. STAHL Series 8118 junction boxes are equipped with 4, 5 or 8 mantle terminals depending on their design size. As an option, miniature fuses can still be installed in addition. Junction boxes are therefore also suitable for safeguarding. The robust enclosure made from glass fibre reinforced polyester resin can be equipped with plastic or metal cable glands. |
Explosion Protection
Electrical Data
Ambient Conditions
Mechanical Data
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Junction box With fuses - 8118/113-303 - 133078 - de-DE | Single Data Sheet |
 |
|
| Junction box With fuses - 8118/113-303 - 133078 - en-GB | Single Data Sheet |
 |
|
| Junction boxes - 8118 - es-ES | Product Overview |
 |
|
| Junction boxes - 8118 - fr-FR | Product Overview |
 |
|
| Junction boxes - 8118 - de-DE | Product Overview |
|
|
| Junction boxes - 8118 - en-GB | Product Overview |
|
|
| Junction box With fuses - 8118/113-303 - 133078 - fr-FR | Single Data Sheet |
|
|
| Junction box With fuses - 8118/113-303 - 133078 - es-ES | Single Data Sheet |
|
