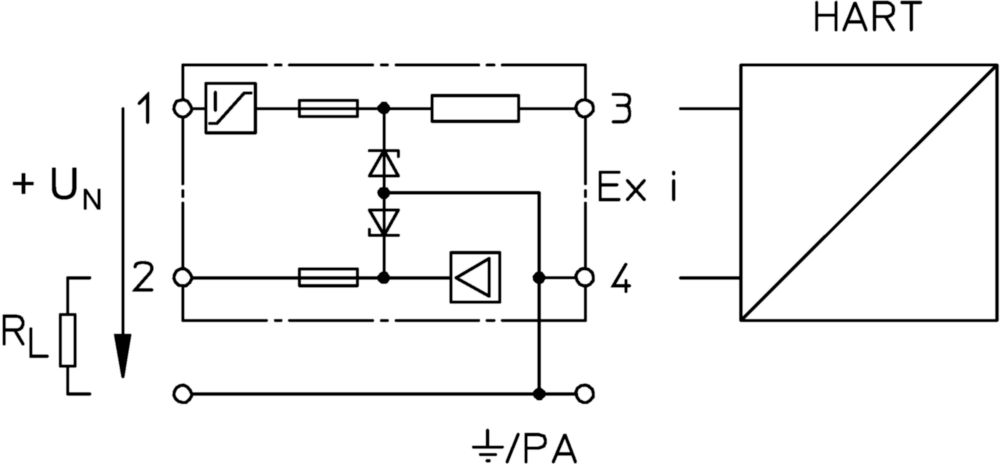

Single-channel safety barriers, positive/for transmitter, Power supply: Uncontrolled, 20- 35V, Uo=28 V, Io=110 mA, Po=770 mW, IIC: Co=0.083 μF, Lo=1.200 mH, IIB: Co=0.650 μF, Lo=9 mH, Zone 2
- Product Type: 9001/51-280-110-141
- Art. No.: 158530
Technical data
General
| MY R. STAHL | 9001A |
| Product variant | Series 9001/51, single-channel safety barrier for transmitters |
| Product Type | 9001/51-280-110-141 |
| Product description | Single-channel safety barriers |
| Highlights | For the intrinsically safe operation of a wide range of devices, such as HART transmitters, solenoid valves, sensors, potential-free contacts and many moreCompact and space-saving devices that are easy to install on a DIN railQuick to install as barriers can be simultaneously snapped onto the rail and connected to PE |
| Functional Description | The series 9001 INTRINSPAK single-channel safety barriers enable the intrinsically safe operation of virtually all field devices. The comprehensive portfolio and the combination of safety barriers cover a wide variety of signals. The devices are incredibly robust and require little space. The back-up fuse is a convenient feature as it is standardised for all variants. |

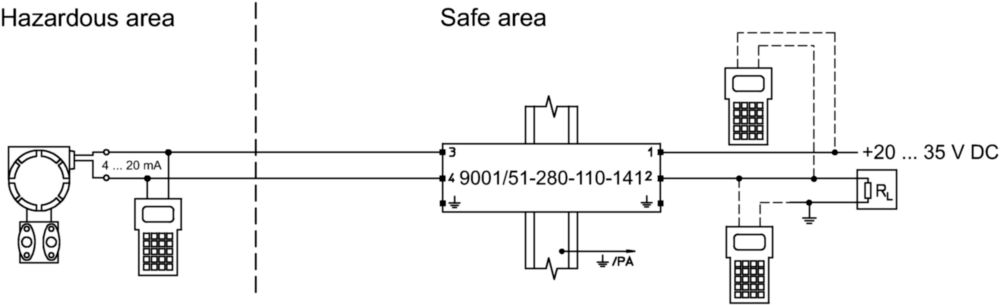

| Particularly suitable for | 2-wire HART transmitter, earthed |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Output
Ambient Conditions
Mechanical Data
Mounting / Installation
Commercial data
