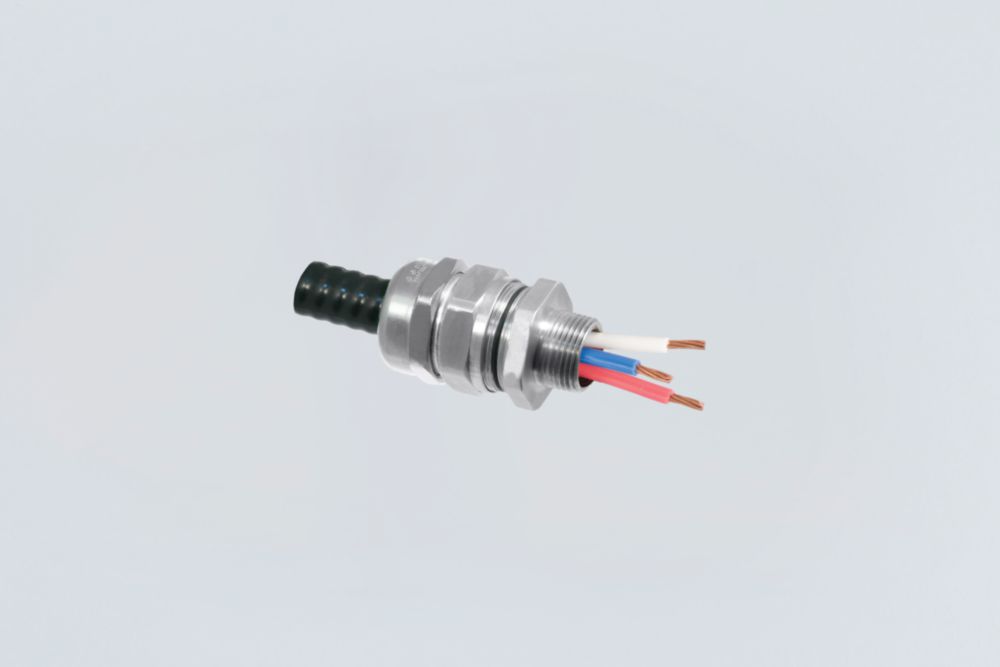

CMP-32TMC, Cable gland, metric, M32 x 1,5 mm, 19.70 - 29.20 mm, Nickel-plated brass, , Zone 1/2/20/21/22
- Product Type: CMP-32TMC
- Art. No.: 243566
Technical data
General
| MY R. STAHL | TMCA |
| Product variant | Ex e cable glands for MC, MC-HL, combined and "TECK" armouring Series TMC |
| Product Type | CMP-32TMC |
| Highlights | Designed for use in North AmericaVersion with NPT and metric threadOperating temperature range -60 °C to +110 °CClass I Zones 1, 21 and Zones 2, 22Class I Zone 1 Ex e and Class I Div. 2 Groups ABCDGlobal certification, UL, cCSAus, IECEx and ATEX |
| Functional Description | The cable glands have a sequential design and therefore do not need to be removed for installation. A 360° rotary spring establishes reliable earthing. They have global certification according to UL, cCSAus, IECEx and ATEX. |
| Description |
Thread size: M32 Clamping range: 19.70 ... 29.20 mm Clamping range inch: 0.78 ... 1.15 in Nickel-plated brass |
Explosion Protection
Ambient Conditions
Mechanical Data
Commercial data
