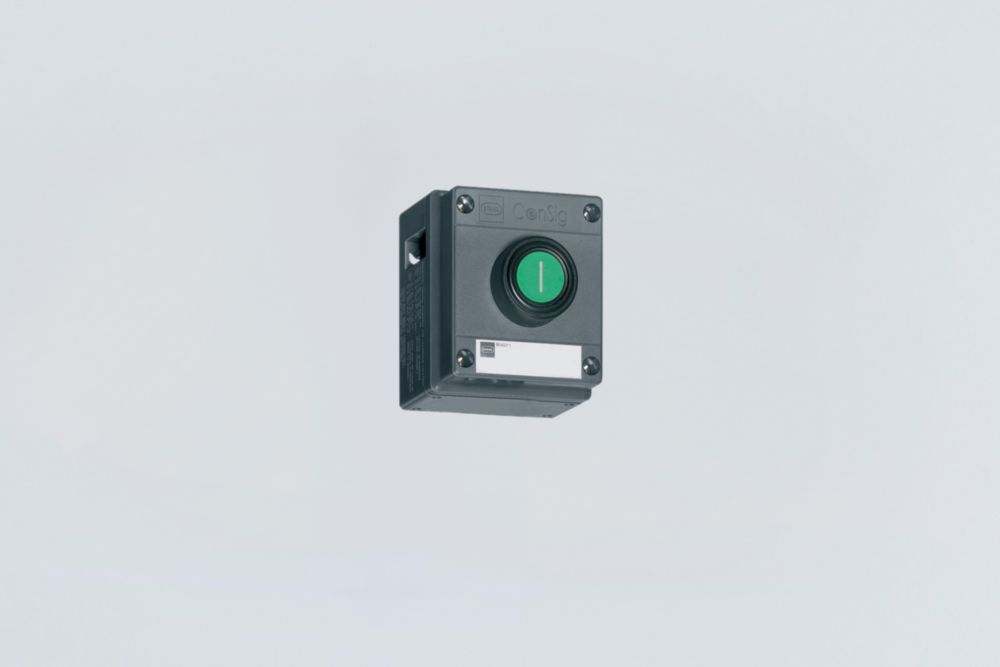

Control Device System Series 8040

With the R. STAHL Series 8040 control device system, you can get a clear overview of the control devices. The 3 combinable design sizes and the modular structure offer flexibility. You can choose from one standard version and customised variants. The 8208 contact elements monitor the systems for wire breakage and short circuit.The 8208 contact elements monitor the systems for wire breakage and short circuit.

  • Flexible: modular structure and 3 sizes enable customer-specific versions
  • Lightweight enclosure made from glass fibre reinforced polyester resin (GRP), suitable for shipping industry and offshore
  • Versions with contact elements 8082 and 8208, usable up to SIL2 and/or SIL 3

Filter product lines

Select the products that are applicable to your intended use.

Scope
Zones
Min. ambient temperature
Max. ambient temperature
Type of protection (IP)
Description​
Languages of documentation
Scope of validity
Silicone-free
Installation position top
Built-in element top
Installation position middle
Built-in element middle
Installation position bottom
Built-in element bottom
Flanges and plates
Connection

52 Products

Please select products you want to compare

Control Device System Series 8040

Art. No.: 130890 Product Type: 8040/1180X-54C06SXXX
Centre installation position: Indicator lamp bezel
Product Description: Control device system ConSig 8040 series
Scope of validity: European Union (ATEX), IECEx
Silicone-free: No
Built-in element middle: LED indicator lamp
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130692 Product Type: 8040/1280X-01L13SA05-01L08SA05
Bottom installation position: Pushbutton
Top installation position: Pushbutton
Product Description: Control device system ConSig 8040 series
Scope of validity: European Union (ATEX), IECEx
Silicone-free: No
Built-in element top: Contact element NC / NO
Built-in element bottom: Contact element NC / NO
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130686 Product Type: 8040/1180X-01L50SA05
Centre installation position: Pushbutton
Product Description: Control device system ConSig 8040 series
Scope of validity: IECEx
Silicone-free: No
Built-in element middle: Contact element NC / NO
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130819 Product Type: 8040/1180X-10L07SA08
Centre installation position: EM-STOP mushroom stay-put but.
Product Description: Control device system ConSig 8040 series
Scope of validity: European Union (ATEX), IECEx
Silicone-free: No
Built-in element middle: Contact element NC / NO / NC
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130828 Product Type: 8040/1180X-35C06SA45
Centre installation position: LED illuminated pushbutton
Product Description: Control device system ConSig 8040 series
Scope of validity: European Union (ATEX), IECEx
Silicone-free: No
Built-in element middle: Contact element NO / LED / NC
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130665 Product Type: 8040/1180X-09XXXSA05
Centre installation position: EM-STOP mushroom stay-put button with key lock
Product Description: Control device system ConSig 8040 series
Scope of validity: European Union (ATEX), IECEx
Silicone-free: No
Built-in element middle: Contact element NC / NO
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130816 Product Type: 8040/1180X-15L07SA05
Centre installation position: EM-STOP mush. stay-put but. 55
Product Description: Control device system ConSig 8040 series
Scope of validity: European Union (ATEX), IECEx
Silicone-free: No
Built-in element middle: Contact element NC / NO
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130834 Product Type: 8040/1180X-26M01SA05
Centre installation position: Small handle
Product Description: Control device system ConSig 8040 series
Scope of validity: IECEx
Silicone-free: No
Built-in element middle: Contact element NC / NO
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130900 Product Type: 8040/1380X-54C06SA70-01L13SA05-01L08SA05
Centre installation position: Pushbutton
Bottom installation position: Pushbutton
Top installation position: Indicator lamp bezel
Product Description: Control device system ConSig 8040 series
Scope of validity: European Union (ATEX), IECEx
Silicone-free: No
Built-in element top: LED indicator lamp
Built-in element middle: Contact element NC / NO
Built-in element bottom: Contact element NC / NO
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 244850 Product Type: 8040/1180X-10L07SA05
Centre installation position: EM-STOP mushroom stay-put but.
Languages of the documentation: English, German, Russian
Product Description: Control device system ConSig 8040 series
Scope of validity: Belarus, Kazakhstan, Russian Federation
Silicone-free: No
Built-in element middle: Contact element NC / NO
Flange and plates: Without flange, without plates
Screw connections: 1 x M25 Ø 7 to 17 mm
Available in stock
