Electronic relay, Number of channels: 1, Input: Ex i, Output: non-Ex i (Ex e) DC, Input voltage for ON: 14- 28V, Input voltage for OFF: 0- 5V, Zone 1/2
- Product Type: 9174/10-14-00
- Art. No.: 212340
Technical data
General
| MY R. STAHL | 9174A |
| Product variant | Electronic relay |
| Product Type | 9174/10-14-00 |
| Highlights | Requires little space – width of 12 mmDurable module thanks to maintenance-free electronic switching: Ideal for frequent switching operationsEnables use in Zone 1 |
| Functional Description | The Series 9174 compact electronic relay module allows Ex e loads to be switched by an intrinsically safe control system. This complements intrinsically safe binary outputs, e.g. in a remote I/O system. The electronic switch prevents mechanical wear, extending the life of the relay, particularly where frequent switching operations are concerned. |
| Description |
The 9174 electronic relay module makes it possible to switch Ex e loads using an intrinsically safe control system. Input: Ex i; output: 31.2 V/2 A DC, Ex e |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Galvanic isolation
Input
Output
Ambient Conditions

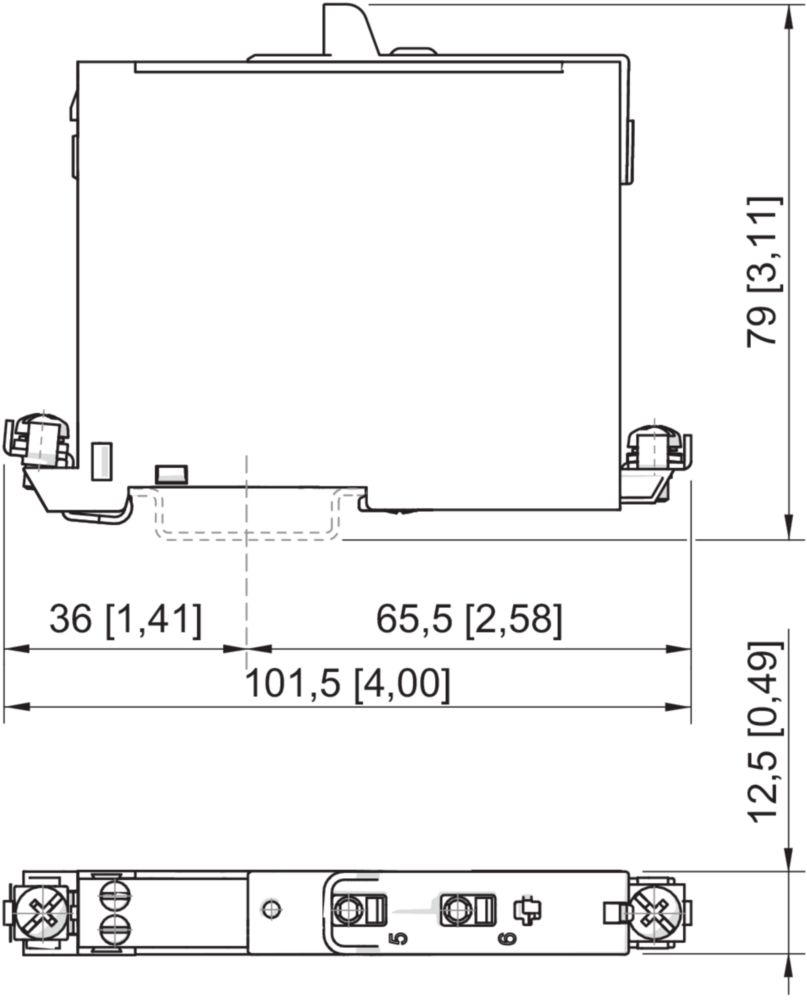

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Electronic relay - 9174 - de-DE | Product Overview |
 |
|
| Electronic relay - 9174 - en-GB | Product Overview |
 |
|
| Electronic relay - 9174 - es-ES | Product Overview |
 |
|
| Electronic relay - 9174 - fr-FR | Product Overview |
 |
|
| Electronic relay for Zone 1 Isolators - 9174/10-14-00 - 212340 - de-DE | Single Data Sheet |
|
|
| Electronic relay for Zone 1 Isolators - 9174/10-14-00 - 212340 - de-DE | Single Data Sheet |
|
|
| Electronic relay for Zone 1 Isolators - 9174/10-14-00 - 212340 - en-GB | Single Data Sheet |
|
|
| Electronic relay for Zone 1 Isolators - 9174/10-14-00 - 212340 - es-ES | Single Data Sheet |
|
|
| Electronic relay for Zone 1 Isolators - 9174/10-14-00 - 212340 - fr-FR | Single Data Sheet |
|
