Safety Switches Series 8146/5-V37

R. STAHL's 8146/5-V37 series safety switches safely disconnect the power supply to machinery and system components for cleaning and repair as prescribed. They can be used at frequencies from 5 to 400 Hz. All of the installed load disconnect switches have an AC-3 switching capacity. The switches can be locked in the 0-position using padlocks.

  • Can be used with conventional drives and drives controlled by frequency converters
  • Intelligent design: A single rotary actuator for actuating both main and auxiliary contacts, ≥ 20 ms leading auxiliary contact for safely disconnecting the frequency converter
  • Version complies with IEC/EN 62626-1, Class 1
  • The rotary actuator can be locked with 3 padlocks in the 0-position

Filter product lines

Select the products that are applicable to your intended use.

Scope
Zones
Min. ambient temperature
Max. ambient temperature
Type of protection (IP)
Detailed number of poles
Rated operational voltage AC
Rated operational current
Frequency range
Enclosure material
Colour of handle

66 Products

Please select products you want to compare

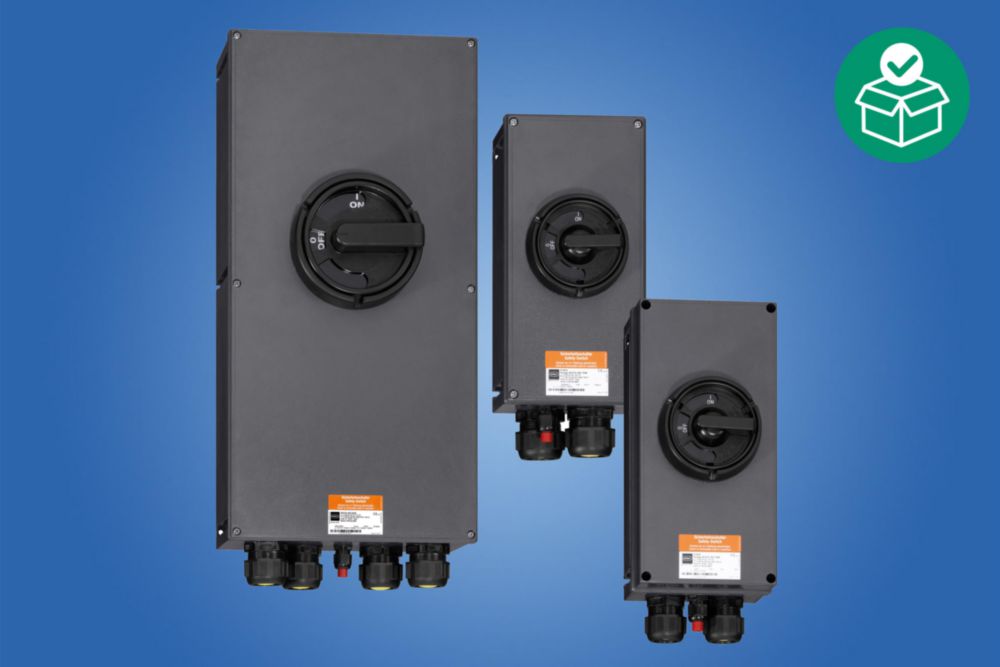

Safety Switches Series 8146/5-V37

Art. No.: 220275 Product Type: 8146/5-V37-300-50-0050
Frequency range: 50 - 60 Hz
Rated operational current: 10.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Black shroud and handle
Detailed number of poles: 3-pole
Available in stock
Please select products you want to compare

Safety Switches Series 8146/5-V37

Art. No.: 201422 Product Type: 8146/5-V37-304-50-0010
Frequency range: 50 - 60 Hz
Rated operational current: 25.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Black shroud and handle
Detailed number of poles: 3-pole
Available in stock
Please select products you want to compare

Safety Switches Series 8146/5-V37

Art. No.: 201405 Product Type: 8146/5-V37-302-50-1050
Frequency range: 50 - 60 Hz
Rated operational current: 16.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Yellow shroud, red handle
Detailed number of poles: 3-pole
Available in stock
Please select products you want to compare

Safety Switches Series 8146/5-V37

Art. No.: 201423 Product Type: 8146/5-V37-304-50-1010
Frequency range: 50 - 60 Hz
Rated operational current: 25.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Yellow shroud, red handle
Detailed number of poles: 3-pole
Available in stock
Please select products you want to compare

Safety Switches Series 8146/5-V37

Art. No.: 147855 Product Type: 8146/5-V37-301-50-0050
Frequency range: 50 - 60 Hz
Rated operational current: 12.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Black shroud and handle
Detailed number of poles: 3-pole
Available in stock
Please select products you want to compare

Safety Switches Series 8146/5-V37

Art. No.: 220278 Product Type: 8146/5-V37-303-50-0010
Frequency range: 50 - 60 Hz
Rated operational current: 20.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Black shroud and handle
Detailed number of poles: 3-pole
Available in stock
Please select products you want to compare

Safety Switches Series 8146/5-V37

Art. No.: 200206 Product Type: 8146/5-V37-305-51-0010-K
Frequency range: 50 - 60 Hz
Rated operational current: 40.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Black shroud and handle
Detailed number of poles: 3-pole
Available in stock
Please select products you want to compare

Safety Switches Series 8146/5-V37

Art. No.: 201420 Product Type: 8146/5-V37-602-60-0010
Frequency range: 50 - 60 Hz
Rated operational current: 16.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Black shroud and handle
Detailed number of poles: 6-pole
Available in stock
Please select products you want to compare

Safety Switches Series 8146/5-V37

Art. No.: 147856 Product Type: 8146/5-V37-301-50-1050
Frequency range: 50 - 60 Hz
Rated operational current: 12.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Yellow shroud, red handle
Detailed number of poles: 3-pole
Available in stock
Please select products you want to compare

Safety Switches Series 8146/5-V37

Art. No.: 147858 Product Type: 8146/5-V37-301-50-1150
Frequency range: 50 - 60 Hz
Rated operational current: 12.000 A
Rated operational voltage AC: 690.00 V
Enclosure material: Polyester resin
Colour of handle: Yellow shroud, red handle
Detailed number of poles: 3-pole
Available in stock
