Control Device System Series 8040

With the R. STAHL Series 8040 control device system, you can get a clear overview of the control devices. The 3 combinable design sizes and the modular structure offer flexibility. You can choose from one standard version and customised variants. The 8208 contact elements monitor the systems for wire breakage and short circuit.The 8208 contact elements monitor the systems for wire breakage and short circuit.

  • Flexible: modular structure and 3 sizes enable customer-specific versions
  • Lightweight enclosure made from glass fibre reinforced polyester resin (GRP), suitable for shipping industry and offshore
  • Versions with contact elements 8082 and 8208, usable up to SIL 2 and/or SIL 3

Filter product lines

Select the products that are applicable to your intended use.

Scope
Zones
Min. ambient temperature
Max. ambient temperature
Type of protection (IP)
Description​
Languages of documentation
Installation position top
Built-in element top
Installation position middle
Built-in element middle
Installation position bottom
Built-in element bottom
Flanges and plates
Connection

46 Products

Please select products you want to compare

Control Device System Series 8040

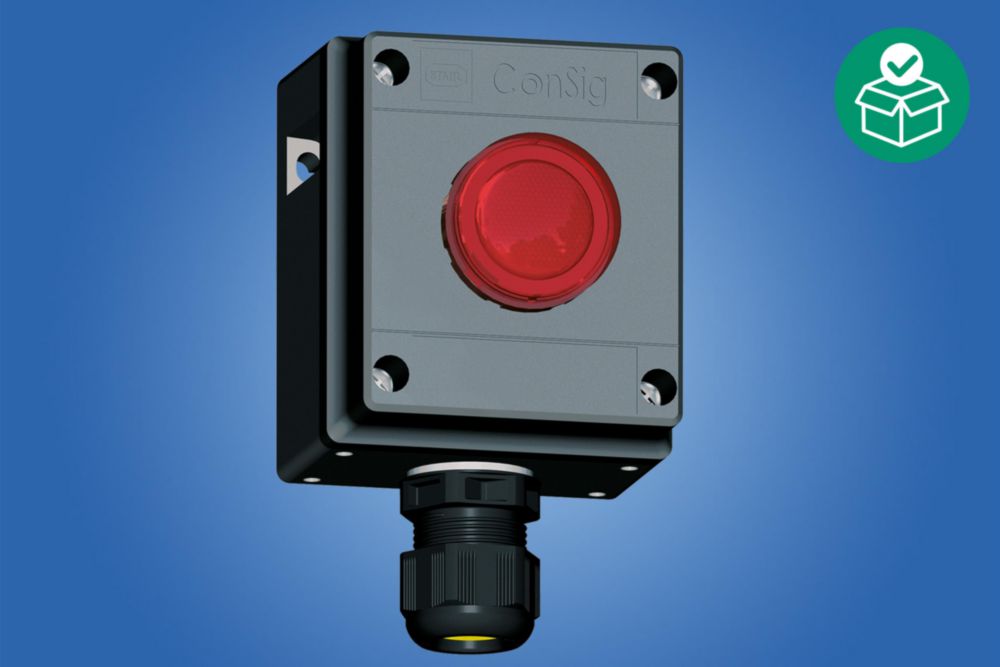

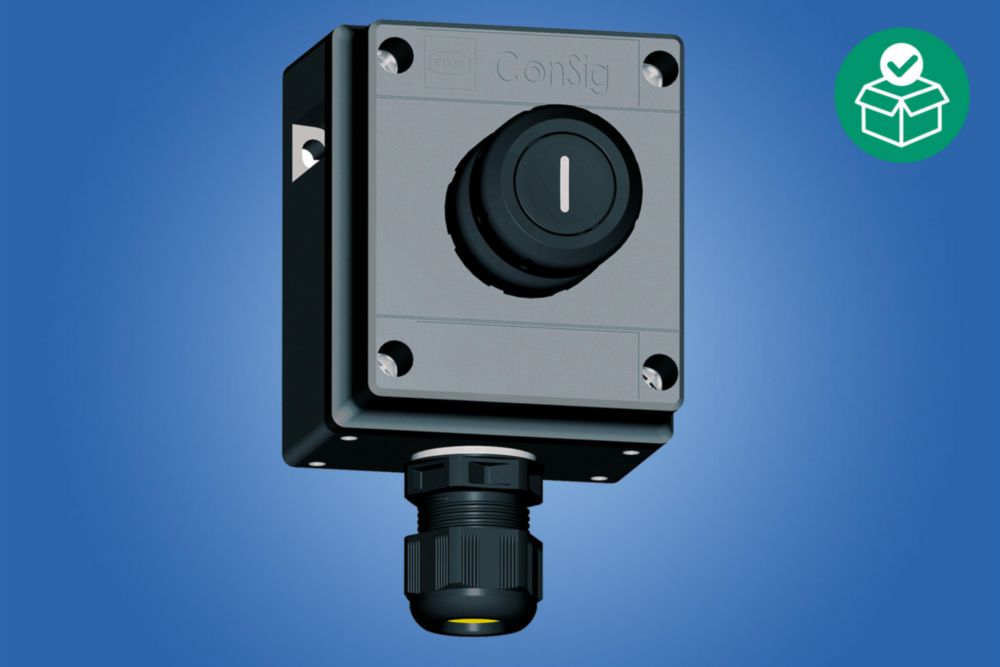

Art. No.: 130686 Product Type: 8040/1180X-01L50SA05
Product Description: Control device system Series ConSig 8040
Built-in element middle: Contact element NC / NO
Installation position middle: Pushbutton
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

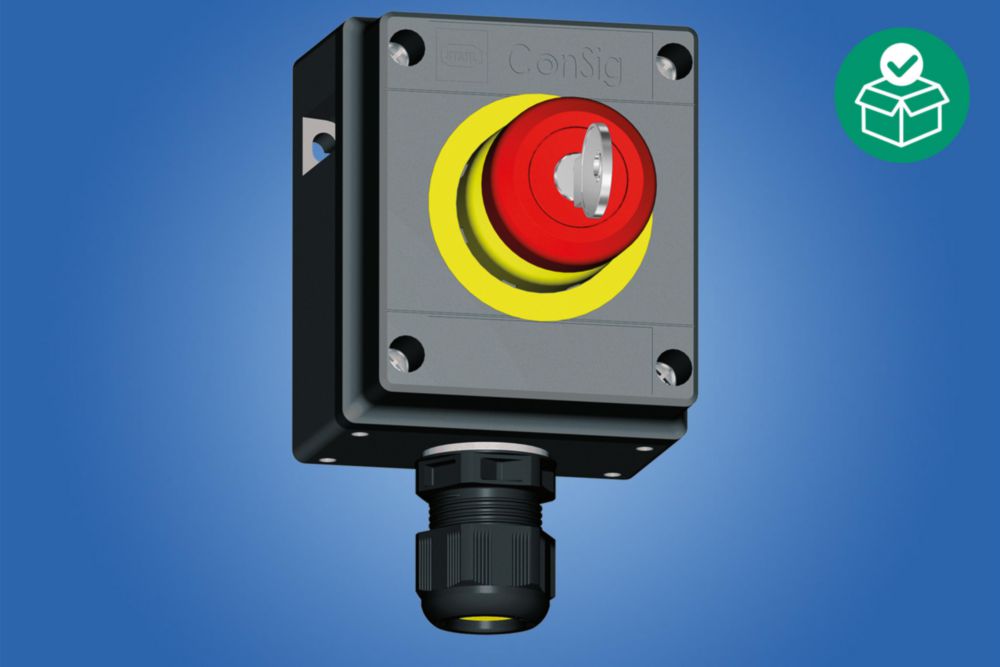

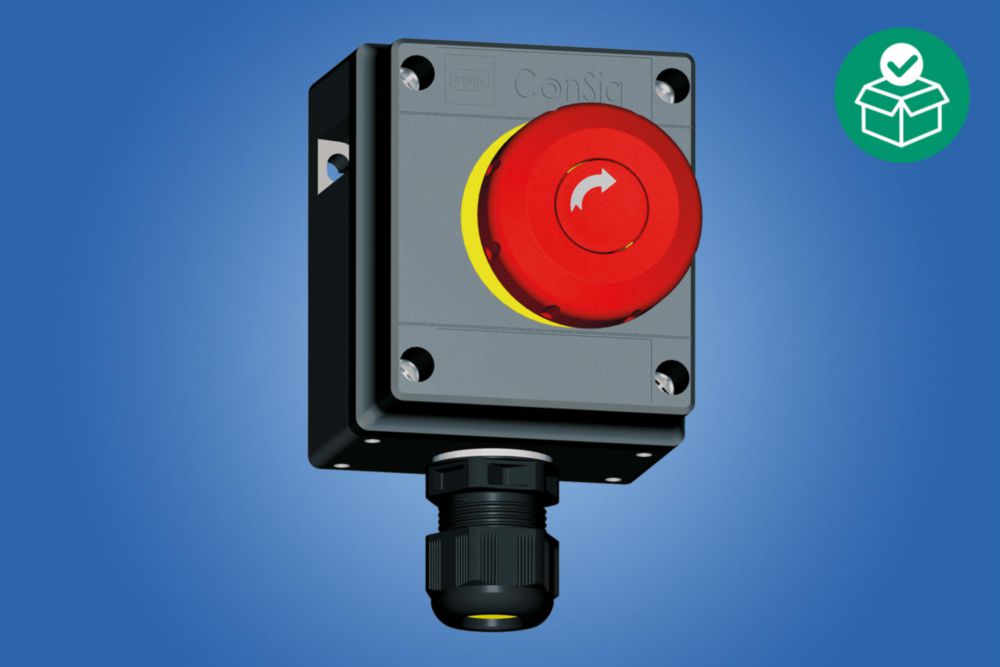

Art. No.: 130679 Product Type: 8040/1180X-10L07SA05
Product Description: Control device system Series ConSig 8040
Built-in element middle: Contact element NC / NO
Installation position middle: EM-STOP stay-put button
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

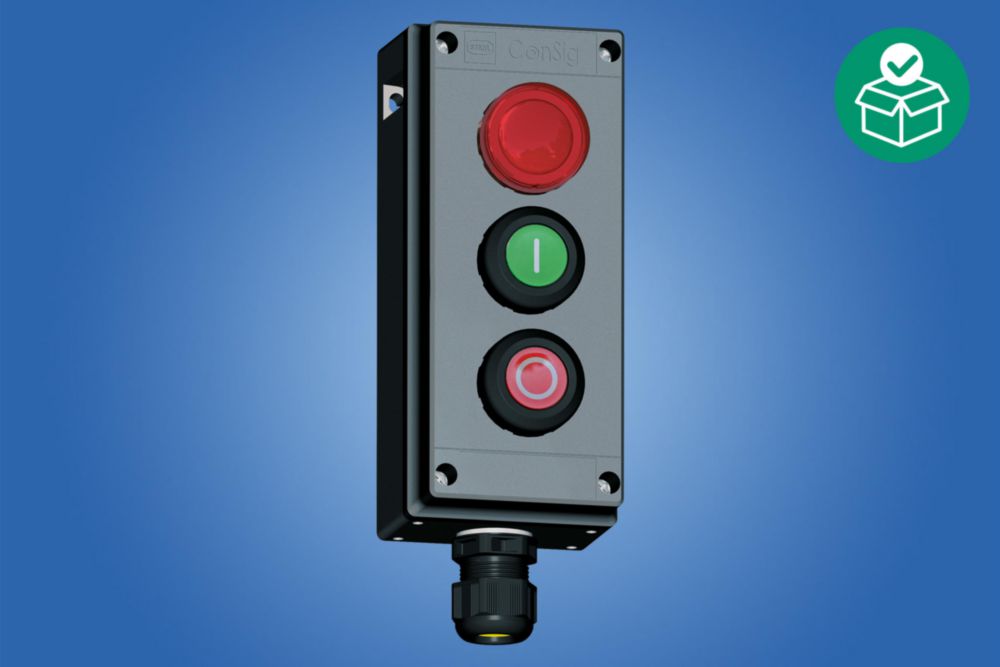

Art. No.: 130900 Product Type: 8040/1380X-54C06SA70-01L13SA05-01L08SA05
Product Description: Control device system Series ConSig 8040
Built-in element top: LED indicating lamp
Built-in element middle: Contact element NC / NO
Built-in element bottom: Contact element NC / NO
Installation position top: Bezel for indicating lamp
Installation position middle: Pushbutton
Installation position bottom: Pushbutton
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130819 Product Type: 8040/1180X-10L07SA08
Product Description: Control device system Series ConSig 8040
Built-in element middle: Contact element NC / NC / NO
Installation position middle: EM-STOP stay-put button
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130813 Product Type: 8040/1180X-03L24SA05
Product Description: Control device system Series ConSig 8040
Built-in element middle: Contact element NC / NO
Installation position middle: Mushroom pushbutton black
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

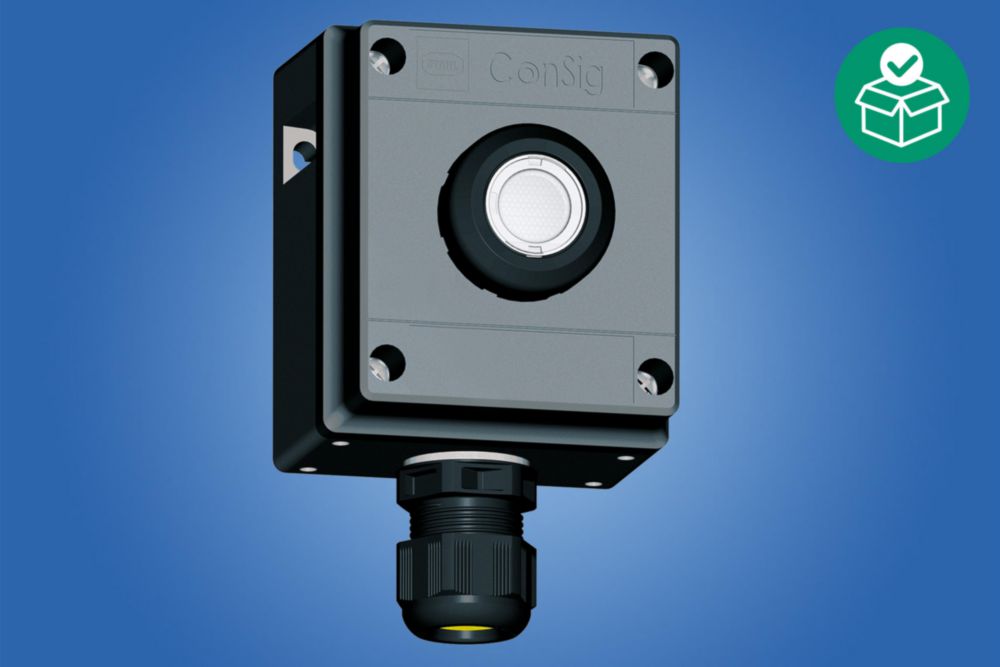

Art. No.: 130890 Product Type: 8040/1180X-54C06SXXX
Product Description: Control device system Series ConSig 8040
Built-in element middle: LED indicating lamp
Installation position middle: Bezel for indicating lamp
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

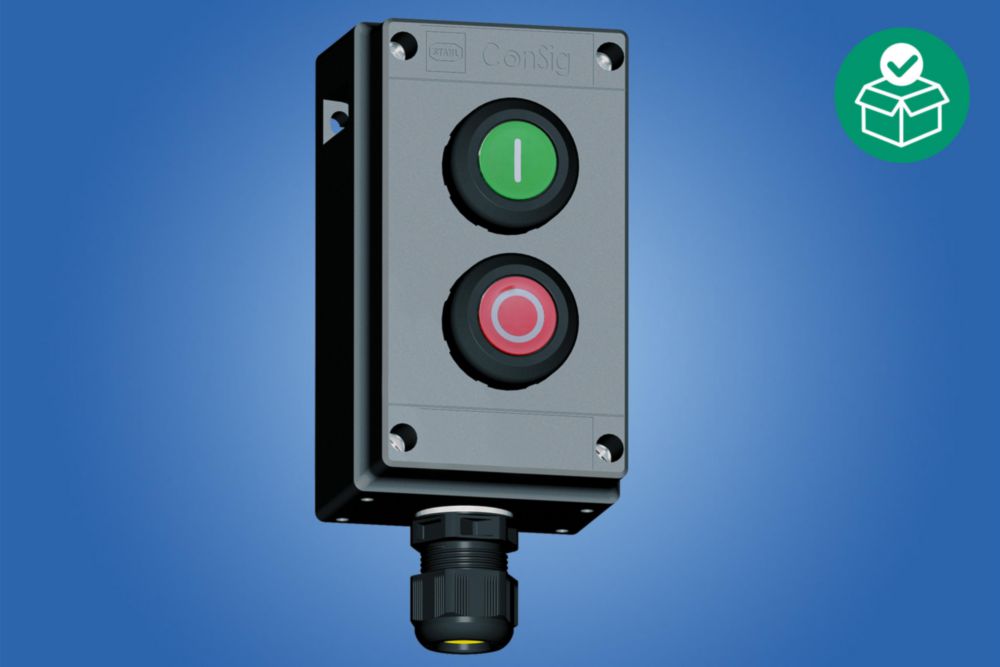

Art. No.: 130692 Product Type: 8040/1280X-01L13SA05-01L08SA05
Product Description: Control device system Series ConSig 8040
Built-in element top: Contact element NC / NO
Built-in element bottom: Contact element NC / NO
Installation position top: Pushbutton
Installation position bottom: Pushbutton
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130898 Product Type: 8040/1280X-54C06SXXX-23D01SA05
Product Description: Control device system Series ConSig 8040
Built-in element top: LED indicating lamp
Built-in element bottom: Contact element NC / NO
Installation position top: Bezel for indicating lamp
Installation position bottom: Twin pushbutton
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130861 Product Type: 8040/1380X-01L13SA05-01L08SA05-01L15SA05
Product Description: Control device system Series ConSig 8040
Built-in element top: Contact element NC / NO
Built-in element middle: Contact element NC / NO
Built-in element bottom: Contact element NC / NO
Installation position top: Pushbutton
Installation position middle: Pushbutton
Installation position bottom: Pushbutton
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
Please select products you want to compare

Control Device System Series 8040

Art. No.: 130834 Product Type: 8040/1180X-26M01SA05
Product Description: Control device system Series ConSig 8040
Built-in element middle: Contact element NC / NO
Installation position middle: Small actuator
Flanges and plates: without flange, without plate
Cable entry: 1 x M25 Ø 7 ... 17 mm
Available in stock
