Linear luminaires

Efficient, robust explosion-proof LED lighting. R. STAHL's LED luminaries are used in a range of industrial hazardous locations. Areas across the globe rely on R. STAHL to provide safe, economical lighting.

Industries trust in R. STAHL's LEDs due to their robust, lightweight, compact and easy to install properties. You will benefit from our innovations in new explosion-proof LED lighting solutions and linear luminaires. These are available with or without emergency lighting functions.

R. STAHL's explosion-proof linear luminaires and LED lighting solutions come in two versions. The first fixture type boasts sophisticated, innovative LED technology. The other a conventional version with T8 fluorescent tubes. As standard, they come with an electrical connection on both sides, five-core through wiring for installation in light strips and a new sealing system for a certified IP66 / IP67 degree of protection. The electronic ballast fitted to the reflector plate of the LED luminaires makes our Ex linear luminaires easy to maintain. No matter which version you install in your environment, you can be ensured that you are in safe hands with R. STAHL.

We have made further technical improvements to our existing LED light fixture models. For example, the EXLUX 6001 is now considerably lighter, more compact, more robust and more torsion-resistant. It achieves optimal illumination. It can even be operated at temperatures as low as -30 °C. All new EXLUX conventional and LED linear luminaires are compatible with the previous series.
Features of R. STAHL's explosion-proof lighting and LED luminaires:

  • Electronic ballast fitted to the reflector plate make lights easy to maintain
  • All-phase safety switch (Zone 1) and through wiring included as standard
  • New sealing system and improved central lock for protection rating IP66 / IP67
  • Extremely robust LED lights, with an impact strength rating of IK10, but lightweight at between 5 and 9 kg

Filter product lines

Select the product lines that are applicable to your intended use.

Scope
Zones
Min. ambient temperature
Max. ambient temperature
Type of protection (IP)
Description​
Rated operational voltage AC
Rated operational voltage DC
Frequency range
Number of lamps
Lamp wattage
Lamps
Enclosure material
Diffusor
Installed terminal strip
Max.solid connection terminals
Escape sign
Through wiring
Drilled hole

14 Series (230 Products)

Linear Luminaire with LED EXLUX Series 6002/4

  • The latest LED technology with a high luminous efficacy and a long service life
  • Extremely high luminaire efficacy
  • Luminous flux after 100,000 h still 90% of the starting luminous flux
  • Optionally with DALI for controlling and monitoring the luminaire
  • Optionally addressable for direct actuation of a common battery system

Linear Luminaire with LED EXLUX Series 6402/4

  • State-of-the-art LED technology with high luminous efficacy and long service life
  • Extremely high luminaire efficacy
  • Luminous flux after 100,000 h still 90% of the starting luminous flux
  • Optionally with DALI for controlling and monitoring the luminaire
  • Optionally with address modules for directly actuation of a common battery system

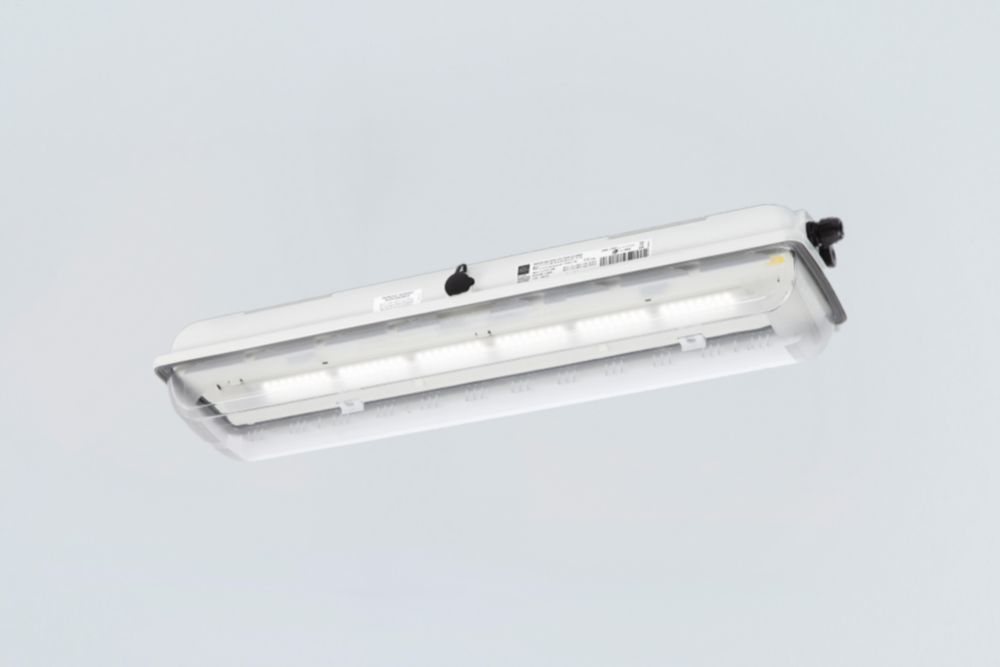

Linear Luminaire with LED EXLUX Series L402/4

  • Highly resistant industrial design
  • Linear luminaire with long-life, efficient LED technology (up to 138 lm/W)
  • Lightweight yet extremely robust, with an impact strength rating of IK10

Linear Luminaire with LED Sheet Steel Series 6012/5

  • Extra flat version for low mounting depth
  • For use in Zones 1, 2, 21 and 22
  • Latest LED technology with a high luminous efficacy and a long service life
  • Powder-coated sheet-steel or brushed stainless steel
  • Central lock

Linear Luminaire with LED Sheet Steel Series 6412/5

  • Extra flat version for low mounting depth
  • For use in Zones 2, 21 and 22
  • Latest LED technology with a high luminous efficacy and a long service life
  • Powder-coated sheet-steel or brushed stainless steel
  • Central lock

Linear Luminaire for Fluorescent Lamps Sheet Steel Series 6012/1

  • Extra flat version for low mounting depth
  • Can be used in Zones 1, 2, 21 and 22
  • Central lock for opening and closing the luminaire, featuring safety switch that disconnects power supply at all poles when luminaire opened
  • Enclosure made from powder-coated sheet steel or stainless steel

Linear Luminaire for Fluorescent Lamps Sheet Steel Series 6412/1

  • Extra flat version for low mounting depth
  • Can be used in Zones 2, 21 and 22
  • Explosion-protected linear luminaire with two or four fluorescent lamps
  • Ideal for lighting spray and paint lines

Linear Luminaire for Fluorescent Lamps Sheet Steel Series 6014/1

  • Can be used in Zones 1, 2, 21 and 22
  • Central lock for opening and closing the luminaire, featuring safety switch that disconnects power supply at all poles when luminaire opened
  • Enclosure made from powder-coated sheet steel or stainless steel

Linear Luminaire for Fluorescent Lamps Sheet Steel Series 6414/1

  • Can be used in Zones 2, 21 and 22
  • Central lock for opening and closing the luminaire
  • Enclosure made from powder-coated sheet steel or stainless steel

Linear Luminaire for Fluorescent Lamps EXLUX Series 6001

  • Can be used in Zone 1, 2, 21 and 22
  • Extremely robust: Impact strength rating of IK10
