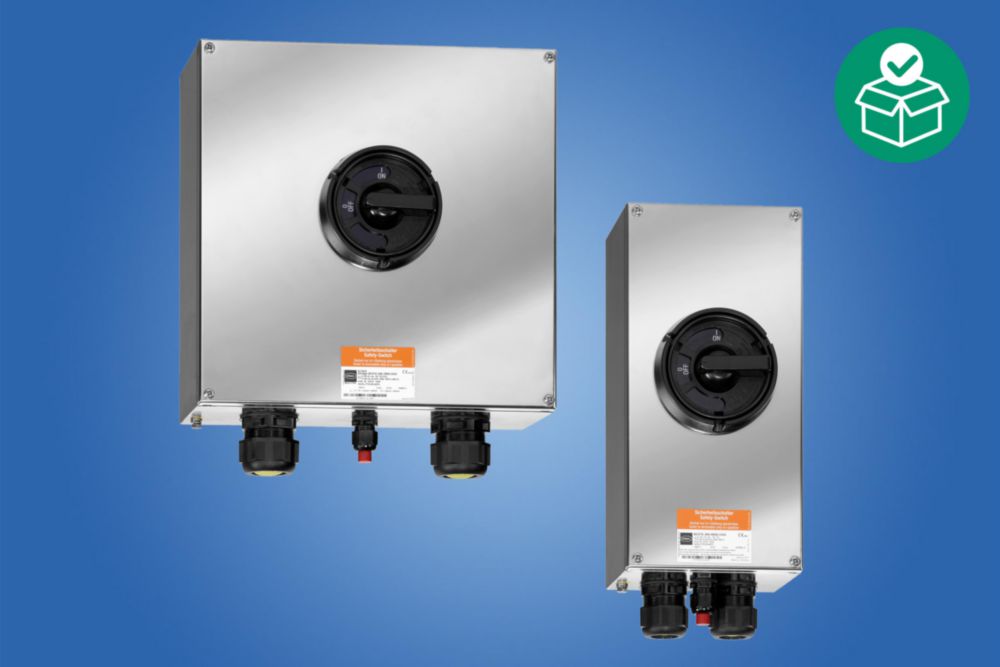

Safety Switches Series 8150/5-V37

R. STAHL's 8150/5-V37 series safety switches safely disconnect the power supply to machinery and system components for cleaning and repair as prescribed. They can be used at frequencies from 5 to 400 Hz. All of the installed load disconnect switches have an AC-3 switching capacity. The switches can be locked in the 0-position using padlocks.

  • Can be used with conventional drives and drives controlled by frequency converters
  • Intelligent design: A single rotary actuator for actuating both main and auxiliary contacts, ≥ 20 ms leading auxiliary contact for safely disconnecting the frequency converter
  • Version complies with IEC/EN 62626-1, Class 1
  • The rotary actuator can be locked with 3 padlocks in the 0-position

Filter product lines

Select the products that are applicable to your intended use.

Scope
Zones
Min. ambient temperature
Max. ambient temperature
Type of protection (IP)
Detailed number of poles
Rated operational voltage AC
Rated operational current
Frequency range
Enclosure material
Colour of handle

16 Products

Please select products you want to compare

Safety Switches Series 8150/5-V37

Art. No.: 214173 Product Type: 8150/5-V37-305-51-0010-K
Rated operational voltage AC: 690.00 V
Rated operational current: 40.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: black collar and handle
Detailed number of poles: 3 pole
Available in stock
Please select products you want to compare

Safety Switches Series 8150/5-V37

Art. No.: 214171 Product Type: 8150/5-V37-302-50-0010
Rated operational voltage AC: 690.00 V
Rated operational current: 16.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: black collar and handle
Detailed number of poles: 3 pole
Available in stock
Please select products you want to compare

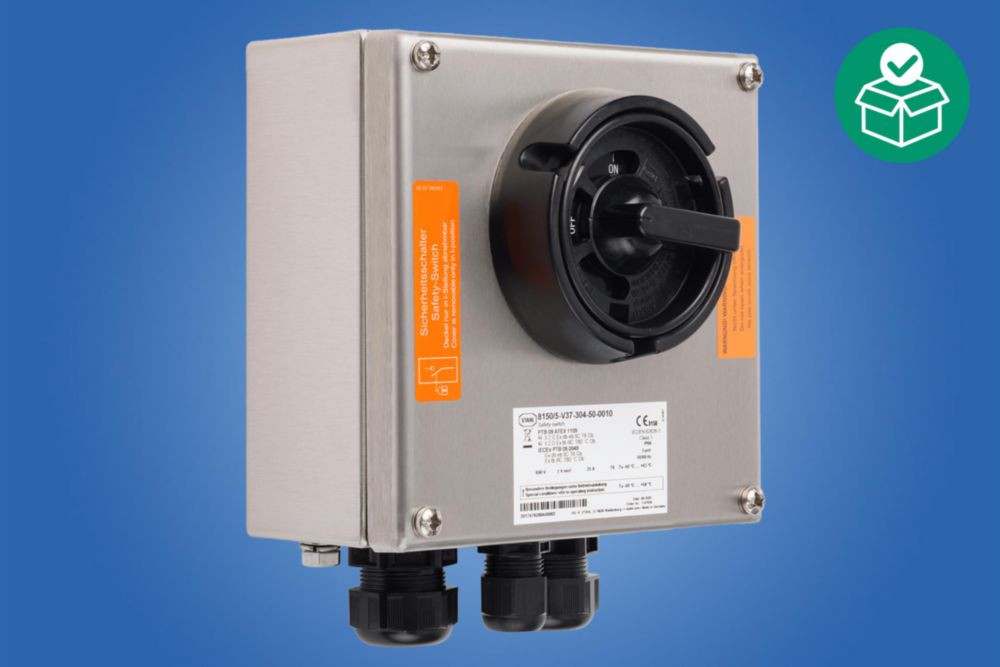

Safety Switches Series 8150/5-V37

Art. No.: 214172 Product Type: 8150/5-V37-304-50-0010
Rated operational voltage AC: 690.00 V
Rated operational current: 25.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: black collar and handle
Detailed number of poles: 3 pole
Available in stock
Please select products you want to compare

Safety Switches Series 8150/5-V37

Art. No.: 201468 Product Type: 8150/5-V37-308-51-0010-K
Rated operational voltage AC: 690.00 V
Rated operational current: 125.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: black collar and handle
Detailed number of poles: 3 pole
On request
Please select products you want to compare

Safety Switches Series 8150/5-V37

Art. No.: 214174 Product Type: 8150/5-V37-306-51-0010-K
Rated operational voltage AC: 690.00 V
Rated operational current: 63.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: black collar and handle
Detailed number of poles: 3 pole
On request
Please select products you want to compare

Safety Switches Series 8150/5-V37

Art. No.: 222692 Product Type: 8150/5-V37-305-51-1010-K
Rated operational voltage AC: 690.00 V
Rated operational current: 40.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: yellow collar, red handle
Detailed number of poles: 3 pole
On request
Please select products you want to compare

Safety Switches Series 8150/5-V37

Art. No.: 222688 Product Type: 8150/5-V37-302-50-1010
Rated operational voltage AC: 690.00 V
Rated operational current: 16.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: yellow collar, red handle
Detailed number of poles: 3 pole
On request
Please select products you want to compare

Safety Switches Series 8150/5-V37

Art. No.: 222693 Product Type: 8150/5-V37-306-51-1010-K
Rated operational voltage AC: 690.00 V
Rated operational current: 63.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: yellow collar, red handle
Detailed number of poles: 3 pole
On request
Please select products you want to compare

Safety Switches Series 8150/5-V37

Art. No.: 222691 Product Type: 8150/5-V37-304-50-1010
Rated operational voltage AC: 690.00 V
Rated operational current: 25.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: yellow collar, red handle
Detailed number of poles: 3 pole
On request
Please select products you want to compare

Safety Switches Series 8150/5-V37

Art. No.: 222694 Product Type: 8150/5-V37-308-51-1010-K
Rated operational voltage AC: 690.00 V
Rated operational current: 125.000 A
Frequency range: 50 - 60 Hz
Enclosure material: Stainless steel
Colour of handle: yellow collar, red handle
Detailed number of poles: 3 pole
On request
