Field device coupler 8 spurs Series 9411/24
Art. No.:
203617
Product Type:
9411/24-310-41
Product Description:
ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i
Zone Filter:
Zone 2 | 3 G | Gc
Application range (zones):
2
Ex interface zone:
0, 1, 2, 20, 21, 22
Certificates:
ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), India (PESO), International (FF), USA (FM)
Spurs connection type:
Screw terminals
Field enclosure:
Without, DIN rail mounting
Width:
208.500 mm
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9411F |
| Product Type | 9411/24-310-41 |
| Product Description | ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i |
| Highlights | For connecting 8 (FISCO, Entity) fieldbus devices in Zone 2Operation on a high-power trunkReduced start-up current thanks to power management and short-circuit limiting with disconnection |
| Functional Description | Series 9411/24 Ex i field device couplers for Zone 2 with galvanic separation are used for interference-free connection of up to 8 intrinsically safe FF H1 or PROFIBUS PA field devices to the high-power trunk. The spurs with the ia type of protection can be used for fieldbus devices in Zones 1 and 2 and are protected by a short-circuit limiting function. The integrated power management minimises start-up and short-circuit currents. Available with screw or spring clamp terminals. |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Galvanic isolation
Input
Output
Device Specific Data
Ambient Conditions

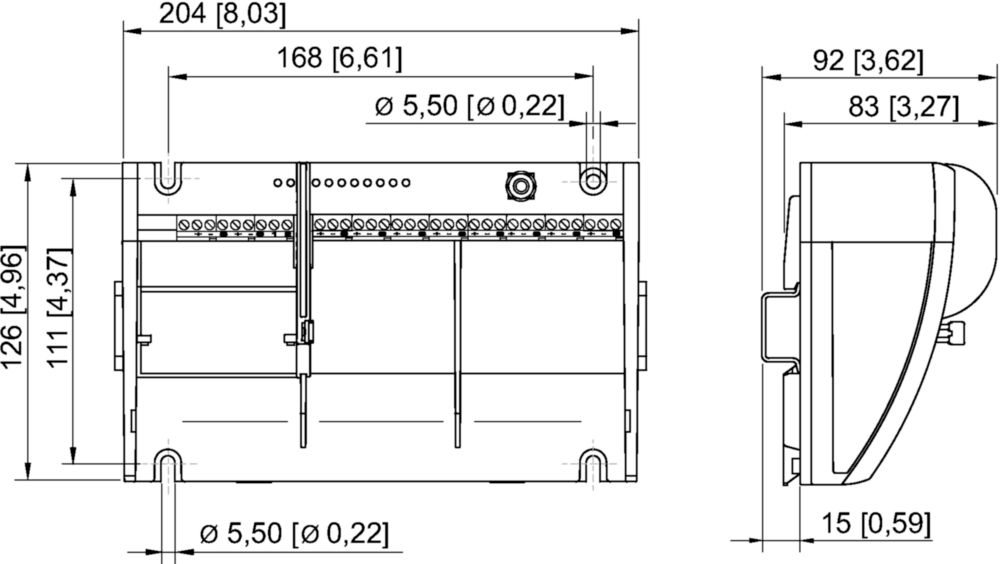

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Field Device Coupler 8 Spurs Series 9411/24 | Data Sheet |
 |
|
| Field Device Coupler 8 Spurs Series 9411/24 | Data Sheet |
|
|
| Field Device Coupler 8 Spurs Series 9411/24 | Data Sheet |
 |
|
| Field Device Coupler 8 Spurs Series 9411/24 | Data Sheet |
|
|
| Field Device Coupler Series 9411/24 | Data Sheet |
 |
|
| Field Device Coupler Series 9411/24 | Data Sheet |
|
|
| Field Device Coupler Series 9411/24 | Data Sheet |
 |
|
| Field Device Coupler Series 9411/24 | Data Sheet |
|
|
| Ex i field device coupler 8 spurs - 9411/24 - fr-FR | Product Overview |
|
|
| Ex i field device coupler 8 spurs - 9411/24 - es-ES | Product Overview |
|
|
| Ex i field device coupler 8 spurs - 9411/24 - de-DE | Product Overview |
|
|
| Ex i field device coupler 8 spurs - 9411/24 - en-GB | Product Overview |
|
|
| Ex i field device coupler 8 spurs - 9411/24 - en-GB | Product Overview |
|
|
| Ex i field device coupler 8 spurs - 9411/24 - en-US | Product Overview |
  |
|
| ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i - 9411/24-310-41 - 203617 - ... | Single Data Sheet |
|
|
| ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i - 9411/24-310-41 - 203617 - ... | Single Data Sheet |
|
|
| ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i - 9411/24-310-41 - 203617 - ... | Single Data Sheet |
|
|
| ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i - 9411/24-310-41 - 203617 - ... | Single Data Sheet |
|
|
| ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i - 9411/24-310-41 - 203617 - ... | Single Data Sheet |
|
|
| ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i - 9411/24-310-41 - 203617 - ... | Single Data Sheet |
|
|
| ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i - 9411/24-310-41 - 203617 - ... | Single Data Sheet |
|
|
| ISbus fieldbus technology Field device coupler, 8 spurs For Zone 2 Ex i - 9411/24-310-41 - 203617 - ... | Single Data Sheet |
|
