Moulded case circuit breakers for motor protection Series 8523/8

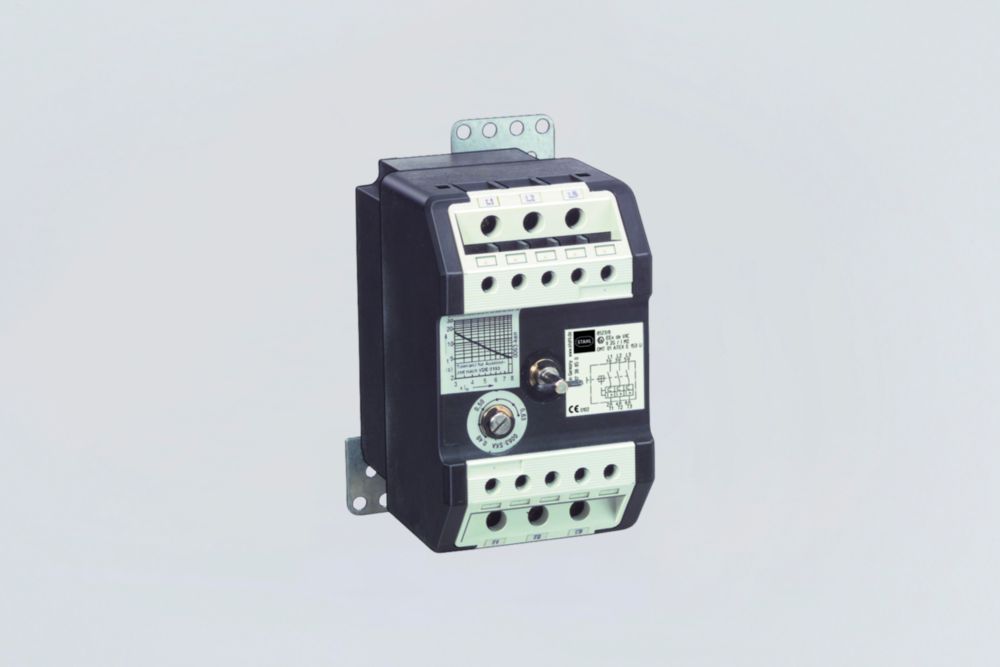

R. STAHL Series 8523/8 motor protection moulded case circuit breakers protect and switch Ex e motors with a non-adjustable fast short-circuit release and a thermal overcurrent release adjustable at the switch. The switch is actuated using a rotary actuator and the switching position is always easy to see. You can set different current ranges.

  • Safe switching for protecting Ex e motors
  • Release: Non-adjustable fast short-circuit release, adjustable thermal overcurrent release
  • Undervoltage releases and shunt trips are also options
  • Optional auxiliary contacts: 1 NC + 1 NO or 2 NC + 2 NO

Filter product lines

hide
Certificates
Zone
Rated operational voltage AC
Current-setting range
Auxiliary contacts
Min. ambient temperature
Max. ambient temperature
Subsitution for material

131 Products

Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 20- 22.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219036
Product Type: 8523/82-14-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 20.00 - 22.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 20- 22.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219035
Product Type: 8523/82-14-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 20.00 - 22.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 16- 20A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219034
Product Type: 8523/82-13-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 16.00 - 20.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 16- 20A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219033
Product Type: 8523/82-13-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 16.00 - 20.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 16- 20A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219032
Product Type: 8523/82-13-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 16.00 - 20.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219031
Product Type: 8523/82-12-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219030
Product Type: 8523/82-11-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219029
Product Type: 8523/82-11-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219028
Product Type: 8523/82-11-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219027
Product Type: 8523/82-10-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219026
Product Type: 8523/82-10-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219025
Product Type: 8523/82-09-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219024
Product Type: 8523/82-08-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219023
Product Type: 8523/82-08-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219022
Product Type: 8523/82-07-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219021
Product Type: 8523/82-07-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1- 1.60 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219020
Product Type: 8523/82-06-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.00 - 1.60 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219019
Product Type: 8523/82-05-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219018
Product Type: 8523/82-05-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219017
Product Type: 8523/82-05-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219016
Product Type: 8523/82-04-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219015
Product Type: 8523/82-04-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.25 - 0.40 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219014
Product Type: 8523/82-03-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.25 - 0.40 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.25 - 0.40 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219013
Product Type: 8523/82-03-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.25 - 0.40 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.16 - 0.25 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219012
Product Type: 8523/82-02-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.16 - 0.25 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.16 - 0.25 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219011
Product Type: 8523/82-02-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.16 - 0.25 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.16 - 0.25 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219010
Product Type: 8523/82-02-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.16 - 0.25 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.10 - 0.16 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219009
Product Type: 8523/82-01-129
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.10 - 0.16 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.10 - 0.16 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219008
Product Type: 8523/82-01-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.10 - 0.16 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.10 - 0.16 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 219007
Product Type: 8523/82-01-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.10 - 0.16 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 20- 22.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 219006
Product Type: 8523/81-14-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 20.00 - 22.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 20- 22.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 219005
Product Type: 8523/81-14-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 20.00 - 22.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 20- 22.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 219004
Product Type: 8523/81-14-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 20.00 - 22.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 16- 20A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 219003
Product Type: 8523/81-13-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 16.00 - 20.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 219002
Product Type: 8523/81-12-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 219001
Product Type: 8523/81-12-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 219000
Product Type: 8523/81-11-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218999
Product Type: 8523/81-11-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218998
Product Type: 8523/81-10-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218997
Product Type: 8523/81-09-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218996
Product Type: 8523/81-08-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218995
Product Type: 8523/81-07-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1- 1.60 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218994
Product Type: 8523/81-06-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.00 - 1.60 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1- 1.60 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218993
Product Type: 8523/81-06-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.00 - 1.60 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218992
Product Type: 8523/81-05-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218991
Product Type: 8523/81-05-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218990
Product Type: 8523/81-04-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218989
Product Type: 8523/81-04-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218988
Product Type: 8523/81-04-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.25 - 0.40 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218987
Product Type: 8523/81-03-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.25 - 0.40 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.25 - 0.40 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218986
Product Type: 8523/81-03-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.25 - 0.40 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.25 - 0.40 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218985
Product Type: 8523/81-03-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.25 - 0.40 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.16 - 0.25 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218984
Product Type: 8523/81-02-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.16 - 0.25 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.16 - 0.25 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218983
Product Type: 8523/81-02-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.16 - 0.25 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.16 - 0.25 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218982
Product Type: 8523/81-02-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.16 - 0.25 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.10 - 0.16 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218980
Product Type: 8523/81-01-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.10 - 0.16 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.10 - 0.16 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218979
Product Type: 8523/81-01-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.10 - 0.16 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.10 - 0.16 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 218978
Product Type: 8523/81-01-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.10 - 0.16 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217756
Product Type: 8523/82-12-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217755
Product Type: 8523/82-10-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 60V, Release: Shunt trip, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217754
Product Type: 8523/82-09-221
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 240V, Release: Shunt trip, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217753
Product Type: 8523/82-08-222
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 240V, Release: Shunt trip, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217752
Product Type: 8523/82-07-222
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 20- 22.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217751
Product Type: 8523/82-14-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 20.00 - 22.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217750
Product Type: 8523/82-11-147
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217749
Product Type: 8523/82-07-146
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 20- 22.50 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217748
Product Type: 8523/82-14-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 20.00 - 22.50 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217747
Product Type: 8523/82-12-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217746
Product Type: 8523/82-11-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217745
Product Type: 8523/82-10-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217744
Product Type: 8523/82-09-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217743
Product Type: 8523/82-08-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217742
Product Type: 8523/82-07-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1- 1.60 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217741
Product Type: 8523/82-06-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.00 - 1.60 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217740
Product Type: 8523/82-05-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 2 NC + 2 NO, Zone 1, 2

Art. No.: 217739
Product Type: 8523/82-04-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Auxiliary contacts: 2 NC + 2 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217738
Product Type: 8523/82-12-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217737
Product Type: 8523/82-12-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217736
Product Type: 8523/82-10-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217735
Product Type: 8523/82-09-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217734
Product Type: 8523/82-09-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217733
Product Type: 8523/82-08-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217732
Product Type: 8523/82-07-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 110V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217731
Product Type: 8523/82-07-125
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1- 1.60 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217730
Product Type: 8523/82-06-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.00 - 1.60 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1- 1.60 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217729
Product Type: 8523/82-06-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.00 - 1.60 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217728
Product Type: 8523/82-04-126
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.25 - 0.40 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217727
Product Type: 8523/82-03-127
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.25 - 0.40 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 20- 22.50 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217726
Product Type: 8523/82-14-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 20.00 - 22.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 16- 20A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217725
Product Type: 8523/82-13-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 16.00 - 20.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217724
Product Type: 8523/82-12-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217723
Product Type: 8523/82-11-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217722
Product Type: 8523/82-10-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217721
Product Type: 8523/82-09-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217720
Product Type: 8523/82-08-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217719
Product Type: 8523/82-07-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1- 1.60 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217718
Product Type: 8523/82-06-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.00 - 1.60 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217717
Product Type: 8523/82-05-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217716
Product Type: 8523/82-04-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.25 - 0.40 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217715
Product Type: 8523/82-03-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.25 - 0.40 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.16 - 0.25 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, 1 NC + 1 NO, Zone 1, 2

Art. No.: 217714
Product Type: 8523/82-02-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.16 - 0.25 A
Auxiliary contacts: 1 NC + 1 NO
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 16- 20A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217713
Product Type: 8523/81-13-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 16.00 - 20.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 16- 20A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217712
Product Type: 8523/81-13-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 16.00 - 20.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217711
Product Type: 8523/81-12-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217710
Product Type: 8523/81-11-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217709
Product Type: 8523/81-10-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217708
Product Type: 8523/81-10-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217707
Product Type: 8523/81-09-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217706
Product Type: 8523/81-09-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 500V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217705
Product Type: 8523/81-08-109
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217704
Product Type: 8523/81-08-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217703
Product Type: 8523/81-07-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217702
Product Type: 8523/81-07-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1- 1.60 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 400V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217701
Product Type: 8523/81-06-107
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.00 - 1.60 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 230V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217700
Product Type: 8523/81-05-106
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 110V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217699
Product Type: 8523/81-05-105
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles: 3, 12.5 kW/400 V, AC release voltage: 415V, Release: Undervoltage release, Zone 1, 2

Art. No.: 217698
Product Type: 8523/81-04-108
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 20- 22.50 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146643
Product Type: 8523/81-14-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 20.00 - 22.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 16- 20A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146642
Product Type: 8523/81-13-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 16.00 - 20.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 12.50 - 16A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146641
Product Type: 8523/81-12-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 12.50 - 16.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 9- 12.50 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146640
Product Type: 8523/81-11-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 9.00 - 12.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 6.30 - 9A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146639
Product Type: 8523/81-10-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 6.30 - 9.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 4- 6.30 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146638
Product Type: 8523/81-09-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 4.00 - 6.30 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 2.50 - 4A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146637
Product Type: 8523/81-08-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 2.50 - 4.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1.60 - 2.50 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146636
Product Type: 8523/81-07-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.60 - 2.50 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 1- 1.60 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146635
Product Type: 8523/81-06-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 1.00 - 1.60 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.63 - 1A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146634
Product Type: 8523/81-05-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.63 - 1.00 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.40 - 0.63 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146633
Product Type: 8523/81-04-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.40 - 0.63 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.25 - 0.40 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146632
Product Type: 8523/81-03-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.25 - 0.40 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.16 - 0.25 A, 690 V, Number of poles:3, 12.5 kW/400 V Release: without, Zone 1, 2

Art. No.: 146631
Product Type: 8523/81-02-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.16 - 0.25 A
Please select products you want to compare Compare
Ex Moulded case circuit breakers for motor protection Series 8523/8 R. STAHL

Moulded case circuit breaker For motor protection, 0.10 - 0.16 A, 690 V, Number of poles:3, 12.5 kW/400 V, Release: without, Zone 1, 2

Art. No.: 146630
Product Type: 8523/81-01-000
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Subsitution for material: 146629
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Canada (FM), USA (FM), ATEX (BVS), IECEx (BVS), Brazil (ULB)
Rated operational voltage AC: 690 V
Current-setting range: 0.10 - 0.16 A
