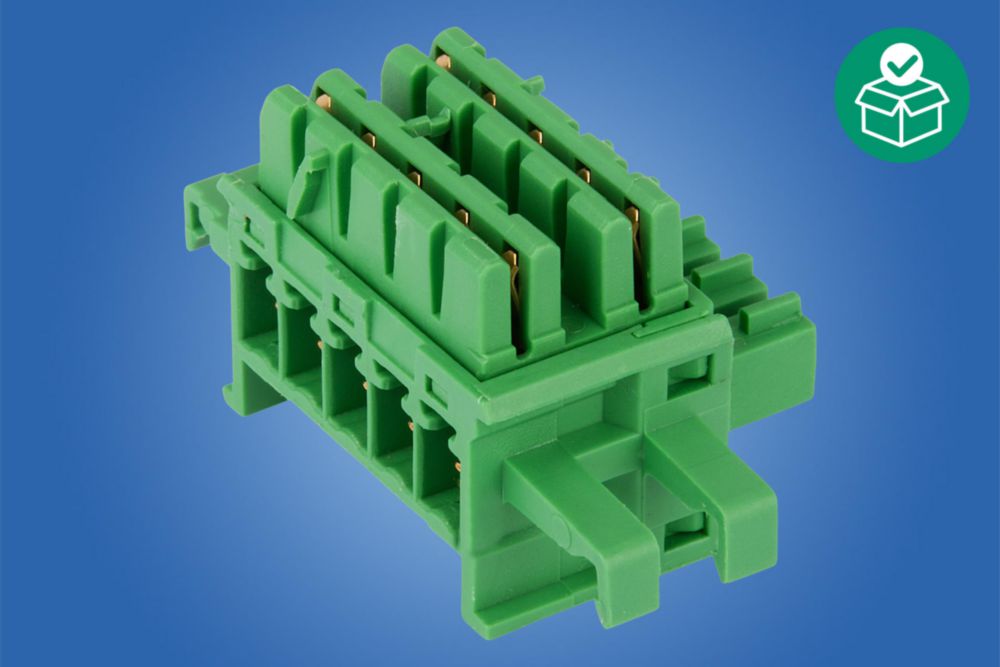

pac-Bus Series 9294
Art. No.:
262928
Product Type:
9294/31-12
Product Description:
pac-Bus single element ISpac
Zone Filter:
Zone 2 | 3 G | Gc
Certificates:
ATEX (BVS), Canada (FM), China (NEPSI), IECEx (BVS), India (PESO), USA (FM)
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9294A |
| Product variant | pac-Bus |
| Product Type | 9294/31-12 |
| Product Description | pac-Bus single element ISpac |
| Highlights | Reduced costs thanks to faster wiring of ISpac devicesMounted and snapped onto standard DIN rails – can be extended at any timeSuitable for industrial environments subject to vibration |
| Functional Description | The Series 9294/31-12 pac-Bus supplies power to 30 to 50 Series 92xx ISpac devices. The auxiliary power can be fed into the pac-Bus segment via the 9194/50-01 terminal set. The 9193/21-11-11 supply module can alternatively be used to provide a redundant supply and to read out the collective error message. The pac-Bus can be clipped onto NS 35/15 and NS35/7.5 DIN rails.The 9294/31-12 pac-Bus can be combined with the 9194/31-17 pac-Bus. |
| Description | Wiring auxiliary power and collective error message |
Explosion Protection
Electrical Data
Auxiliary power
Ambient Conditions
Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| pac-Bus single element ISpac - 9294/31-12 - 262928 - en-US | Single Data Sheet |
  |
|
| pac-Bus single element ISpac - 9294/31-12 - 262928 - de-DE | Single Data Sheet |
 |
|
| pac-Bus single element ISpac - 9294/31-12 - 262928 - en-GB | Single Data Sheet |
 |
|
| pac-Bus - 9294 - fr-FR | Product Overview |
 |
|
| pac-Bus - 9294 - fr-FR | Product Overview |
|
|
| pac-Bus - 9294 - es-ES | Product Overview |
 |
|
| pac-Bus - 9294 - es-ES | Product Overview |
|
|
| pac-Bus - 9294 - de-DE | Product Overview |
|
|
| pac-Bus - 9294 - en-GB | Product Overview |
|
|
| pac-Bus - 9294 - en-US | Product Overview |
|
|
| pac-Bus single element ISpac - 9294/31-12 - 262928 - fr-FR | Single Data Sheet |
|
|
| pac-Bus single element ISpac - 9294/31-12 - 262928 - es-ES | Single Data Sheet |
|
