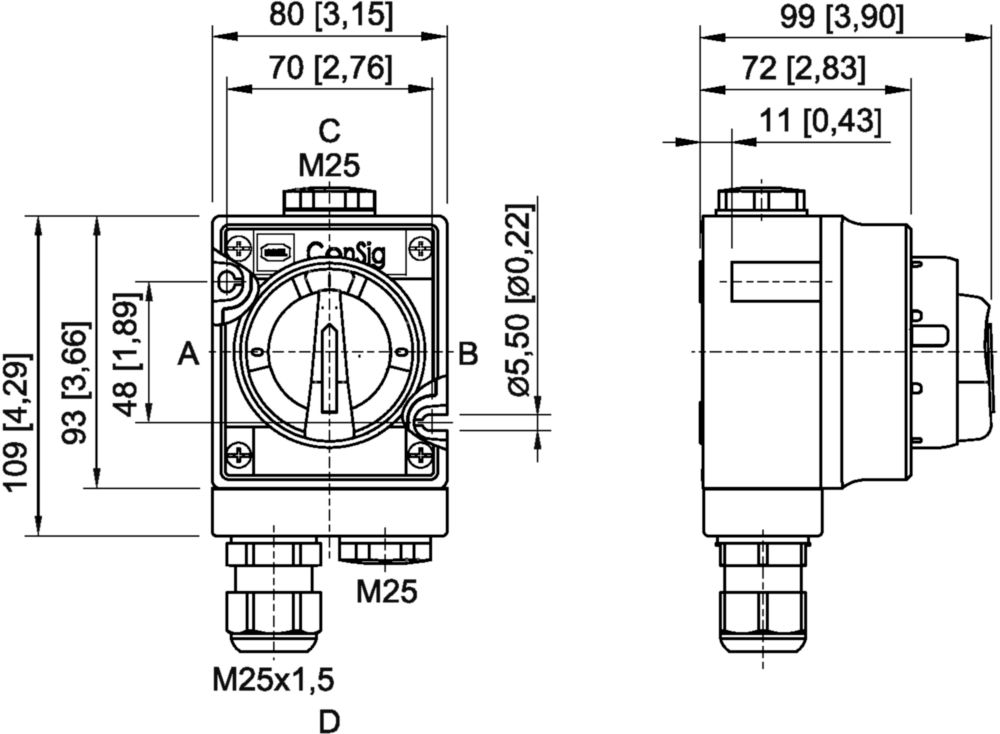

Series 8040/11-V30 installation switch
Art. No.:
245657
Product Type:
8040/11-V30-035-B
min. ambient temperature:
-20 °C
max. ambient temperature:
+55 °C
Certificates:
ATEX (PTB), Brazil (ULB), China (NEPSI), IECEx (PTB), India (PESO), Taiwan (ITRI)
Cable glands and entries:
1 x M25 Ø 7 ... 17 mm
Country of origin:
DE
Available in stock
Technical data
General
| MY R. STAHL | 8040F |
| Product Type | 8040/11-V30-035-B |
| Highlights | Two-pole off switch or two-way switch versionEnclosure made of glass fibre reinforced polyester resinDegree of protection IP66 according to IEC/EN 60529Clear position display 0/1 or ON/OFF |
| Functional Description | The installation switches of Series 8040/11-V30 are used for switching lighting systems. The switching position is clearly shown by the 90° switch. This is an advantage if the lighting system and the switch are housed in different rooms. The fluorescent rotary actuator makes orientation possible if the lighting fails. |
Explosion Protection
Electrical Data
Ambient Conditions
Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Installation Switch Series 8040/11-V30 | Data Sheet |
 |
|
| Installation Switch Series 8040/11-V30 | Data Sheet |
 |
|
| Installation switch Two-way switch - 8040/11-V30-035-B - 245657 - de-DE | Single Data Sheet |
|
|
| Installation switch Two-way switch - 8040/11-V30-035-B - 245657 - en-GB | Single Data Sheet |
|
|
| Installation switch - 8040/11-V30 - es-ES | Product Overview |
 |
|
| Installation switch - 8040/11-V30 - fr-FR | Product Overview |
 |
|
| Installation switch - 8040/11-V30 - de-DE | Product Overview |
|
|
| Installation switch - 8040/11-V30 - en-GB | Product Overview |
|
|
| Installation switch - 8040/11-V30 - zh-CN | Product Overview |
 |
|
| Installation switch Two-way switch - 8040/11-V30-035-B - 245657 - fr-FR | Single Data Sheet |
|
|
| Installation switch Two-way switch - 8040/11-V30-035-B - 245657 - es-ES | Single Data Sheet |
|
