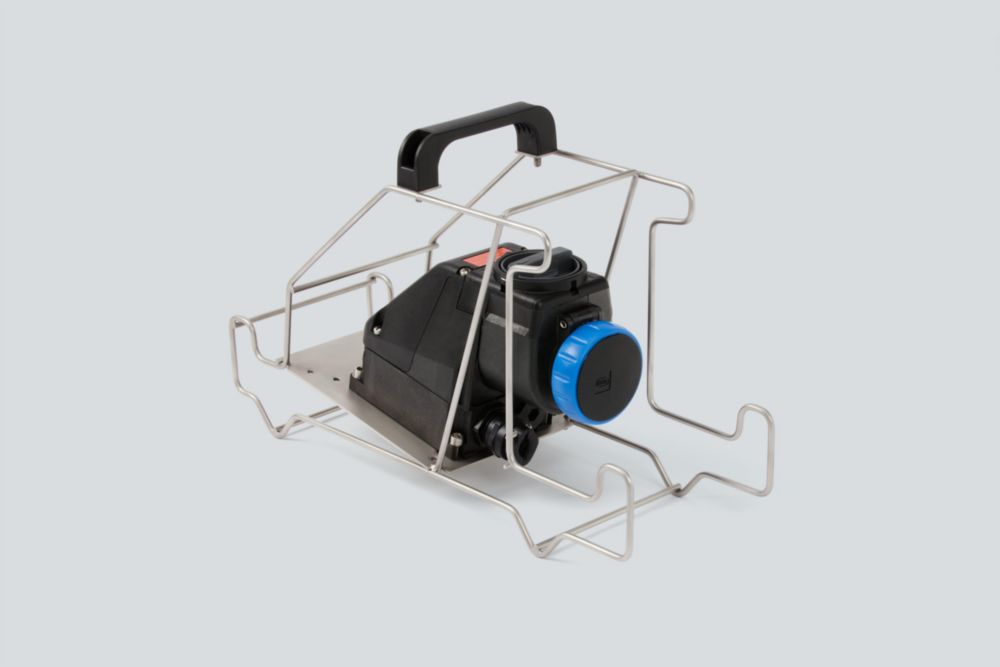

Coupler Sockets 16 A Series 8570/16

The R. STAHL SolConeX 8570/16 series coupler sockets with switch socket are used to connect portable and stationary electrical equipment as well as cables and circuits in hazardous areas. Application range in Zone 1, 21 with full AC-3 switching capacity up to 16 A. With their stainless steel carrying frame with large carrying handle, they are easy to transport and can be positioned on the feet flexibly and securely.
Further product options available:
- Further voltage ranges according to EN 60309
- Silicone-free versions
- Customer-specific label plates
- Plates also in stainless steel

  • Different voltage ranges according to EN 60309
  • Safe to transport in stainless steel carrying frame with large carrying handle, free-standing set-up on feet
  • Large temperature range of use
  • High mechanical impact and shock resistance
  • Perfect protection against penetration of liquids and dusts
  • 3D data for download on the website

Filter product lines

hide
Certificates
Product Description
Rated operational current
Frequency range
Min. ambient temperature
Max. ambient temperature
Silicone-free
Colour code
Coding (clock hour position)​
Detailed number of poles
Entry type 1
Entry 2 type

8 Products

Please select products you want to compare Compare
Ex Series 8570/16 (discontinued) 16 A coupler sockets R. STAHL

Coupler Sockets 16 A Series 8570/16

Art. No.: 274064
Product Type: 8570/16-304-S-26-X-XX-XXX
max. ambient temperature: +45 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: CMP-25A2F100 KLE MsNi
Rated operational current: 16 A
Product Description: Coupler socket 16 A
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: yellow
Coding (clock hour position): 4
Detailed number of poles: 1 P + N + PE
Please select products you want to compare Compare
Ex Series 8570/16 (discontinued) 16 A coupler sockets R. STAHL

Coupler Sockets 16 A Series 8570/16

Art. No.: 274065
Product Type: 8570/16-306-S-26-X-XX-XXX
max. ambient temperature: +45 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: CMP-25A2F100 KLE MsNi
Rated operational current: 16 A
Product Description: Coupler socket 16 A
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: blue
Coding (clock hour position): 6
Detailed number of poles: 2 P + PE
Please select products you want to compare Compare
Ex Series 8570/16 (discontinued) 16 A coupler sockets R. STAHL

Coupler Sockets 16 A Series 8570/16

Art. No.: 274063
Product Type: 8570/16-407-S-26-X-XX-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: CMP-25A2F100 KLE MsNi
max. ambient temperature: +35 °C
Rated operational current: 16 A
Product Description: Coupler socket 16 A
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: black
Coding (clock hour position): 7
Detailed number of poles: 3 P + PE
Please select products you want to compare Compare
Ex Series 8570/16 (discontinued) 16 A coupler sockets R. STAHL

Coupler Sockets 16 A Series 8570/16

Art. No.: 274049
Product Type: 8570/16-506-S-26-X-XX-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: CMP-25A2F100 KLE MsNi
max. ambient temperature: +35 °C
Rated operational current: 16 A
Product Description: Coupler socket 16 A
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: red
Coding (clock hour position): 6
Detailed number of poles: 3 P + N + PE
Please select products you want to compare Compare
Ex Series 8570/16 (discontinued) 16 A coupler sockets R. STAHL

Coupler Sockets 16 A Series 8570/16

Art. No.: 274050
Product Type: 8570/16-507-S-26-X-XX-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: CMP-25A2F100 KLE MsNi
max. ambient temperature: +35 °C
Rated operational current: 16 A
Product Description: Coupler socket 16 A
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: black
Coding (clock hour position): 7
Detailed number of poles: 3 P + N + PE
Please select products you want to compare Compare
Ex Series 8570/16 (discontinued) 16 A coupler sockets R. STAHL

Coupler Sockets 16 A Series 8570/16

Art. No.: 274062
Product Type: 8570/16-406-S-26-X-XX-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: CMP-25A2F100 KLE MsNi
max. ambient temperature: +35 °C
Rated operational current: 16 A
Product Description: Coupler socket 16 A
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: red
Coding (clock hour position): 6
Detailed number of poles: 3 P + PE
Please select products you want to compare Compare
Ex Series 8570/16 (discontinued) 16 A coupler sockets R. STAHL

Coupler Sockets 16 A Series 8570/16

Art. No.: 274061
Product Type: 8570/16-405-S-26-X-XX-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: CMP-25A2F100 KLE MsNi
max. ambient temperature: +35 °C
Rated operational current: 16 A
Product Description: Coupler socket 16 A
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: black
Coding (clock hour position): 5
Detailed number of poles: 3 P + PE
Please select products you want to compare Compare
Ex Series 8570/16 (discontinued) 16 A coupler sockets R. STAHL

Coupler Sockets 16 A Series 8570/16

Art. No.: 274048
Product Type: 8570/16-505-S-26-X-XX-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: CMP-25A2F100 KLE MsNi
max. ambient temperature: +35 °C
Rated operational current: 16 A
Product Description: Coupler socket 16 A
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: black
Coding (clock hour position): 5
Detailed number of poles: 3 P + N + PE
