Ex e enclosure made of moulded material Series 8146
Art. No.:
269233
Product Type:
8146/-052
min. ambient temperature:
-60 °C
max. ambient temperature:
+100 °C
Zone Filter:
Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Certificates:
ATEX (PTB), IECEx (PTB)

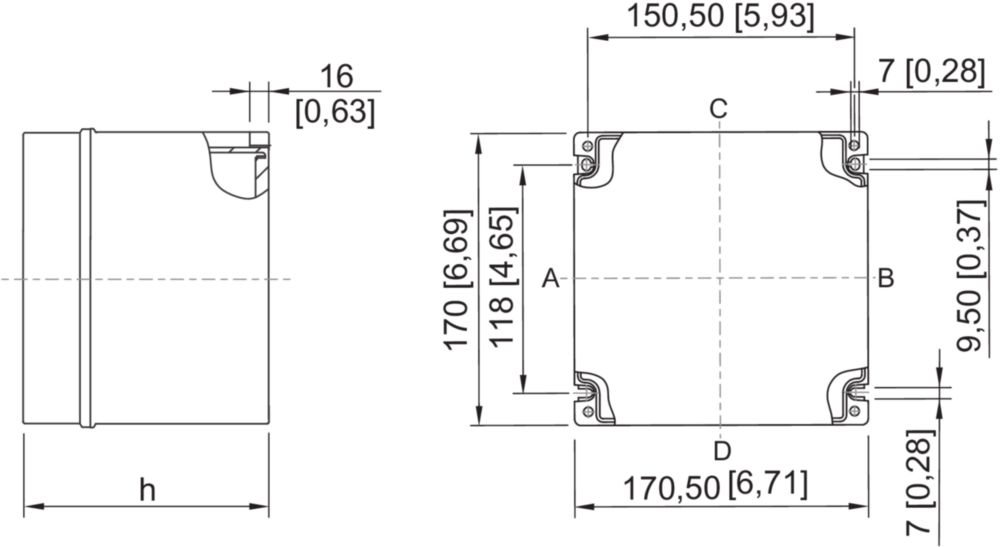

Width:
170 mm
Height:
170 mm
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8146E |
| Product Type | 8146/-052 |
| Highlights | Can be used as a terminal or control boxCorrosion-resistant, lightweight and low-maintenance because it is made of glass fibre reinforced polyester resinCan be combined to form a large unit thanks to the modular design of the enclosures |
| Functional Description | The R. STAHL Series 8146 Ex e enclosure offers reliable protection for the components installed in it for use as a terminal or control box. It is made of glass fibre reinforced polyester resin and is therefore robust, corrosion-resistant and needs very little maintenance. Thanks to the module structure, they can be combined with each other to form larger units. |
Explosion Protection
Electrical Data
Ambient Conditions
Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Ex e enclosure made of moulded material - 8146 - de-DE | Product Overview |
 |
|
| Ex e enclosure made of moulded material - 8146 - zh-CN | Product Overview |
 |
|
| Ex e enclosure made of moulded material - 8146 - es-ES | Product Overview |
 |
|
| Ex e enclosure made of moulded material - 8146 - fr-FR | Product Overview |
 |
|
| Ex e empty enclosure - 8146/-052 - 269233 - de-DE | Single Data Sheet |
|
|
| Ex e empty enclosure - 8146/-052 - 269233 - en-GB | Single Data Sheet |
 |
|
| Ex e empty enclosure - 8146/-052 - 269233 - es-ES | Single Data Sheet |
|
|
| Ex e empty enclosure - 8146/-052 - 269233 - fr-FR | Single Data Sheet |
|
|
| Ex e enclosure made of moulded material - 8146 - en-GB | Product Overview |
|
