7570/12-306, 16 A plug, 200 ... 250 V AC Blue, 2 P + PE, 6 h, 8 - 18 mm, Polyamide, Zone 2, 22
- Product Type: 7570/12-306
- Art. No.: 126388
Technical data
General
| MY R. STAHL | 7570C |
| Product Type | 7570/12-306 |
| Product description | 16 A plug Plug |
| Highlights | Degree of protection IP66, suitable for Zones 2 and 22 worldwide, extreme temperature range of -60 to +55 °CWith AC-3 motor switching capacity according to IEC/EN 60947-3No impact of torsional forces from the wire on the seal |
| Functional Description | R. STAHL Series 7570/12 SolConeX plugs for Zone 2/22 are silicone-free 3-, 4- or 5-pole 16 A plugs. The floating pins allow them to be inserted and removed simply and easily. The pivoting strain relief makes it easier to install the cable. Self-cleaning and corrosion-free plug pins made from high-quality materials ensure optimum electrical contact. |
Explosion Protection
Electrical Data
Ambient Conditions

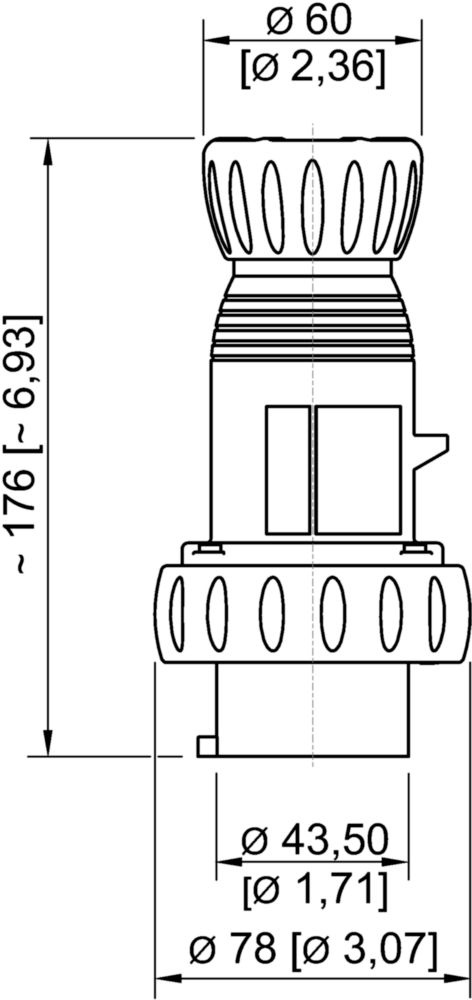

Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Plugs and Sockets Series 7570, 7571, 7575, 7579, 7581 | Data Sheet |
 |
|
| Plugs and Sockets Series 7570, 7571, 7575, 7579, 7581 | Data Sheet |
 |
|
| 16 A plug Plug - 7570/12-306 - 126388 - de-DE | Single Data Sheet |
|
|
| 16 A plug Plug - 7570/12-306 - 126388 - de-DE | Single Data Sheet |
|
|
| 16 A plug Plug - 7570/12-306 - 126388 - en-GB | Single Data Sheet |
|
|
| 16 A plug Plug - 7570/12-306 - 126388 - es-ES | Single Data Sheet |
 |
|
| 16 A plug Plug - 7570/12-306 - 126388 - es-ES | Single Data Sheet |
|
|
| 16 A plug Plug - 7570/12-306 - 126388 - fr-FR | Single Data Sheet |
 |
|
| 16 A plug Plug - 7570/12-306 - 126388 - fr-FR | Single Data Sheet |
|
