Time relay - 202156

Time relay Series 8510
Art. No.: 202156

Product Type: 8510/112-07-309-012
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Zone Filter: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: Brazil (ULB), China (CQST), IECEx (BVS)
AC rated actuation voltage: 24.0 - 240.0 V
DC rated actuation voltage: 24.0 - 240.0 V
Frequency Hz (for AC): 50, 60
Auxiliary contacts: 2 (2 change-over contacts)
Min. time range: 0,05 s
Max. time range: 10 min
Country of origin: DE
More information

Technical data

General

MY R. STAHL 8510O
Product variant release-delayed, without auxiliary power
Product Type 8510/112-07-309-012
Version 2 Without auxiliary voltage
Highlights Type-tested standard components for time-delayed switching
Time delays of up to 300 hours, wide-range control voltage
Release-delayed and response-delayed variants, also with wiping function
Functional Description The R. STAHL Series 8510 time relay is a type-tested standard component for time-delayed switching – with a delay of up to 300 hours. It is available in release-delayed and response-delayed variants, as well as with a wiping function (only Y-∆ time relay), and with various contact types. The corrosion-resistant enclosure can be screwed into Ex e enclosures so that it is protected against vibrations.

Explosion Protection

Electrical Data

Ambient Conditions

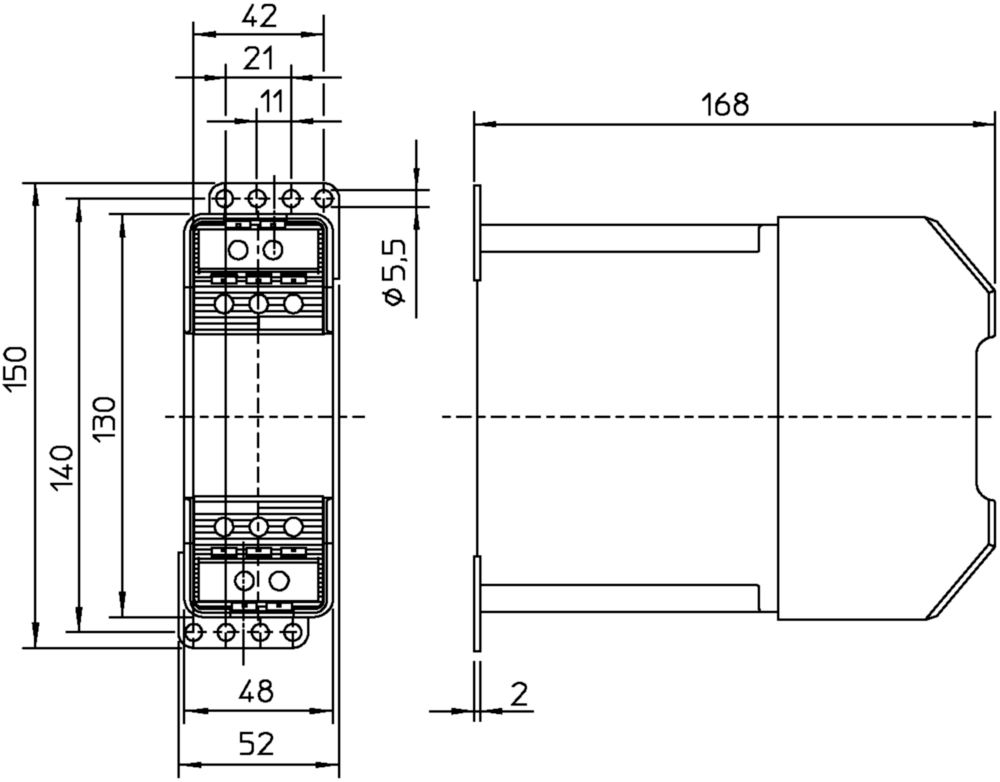

Mechanical Data

Components
